Item: 011812A - 18mm flat NBR suction cup with cleats
|
Item#: 011812A Price: $3.47 ea.
|

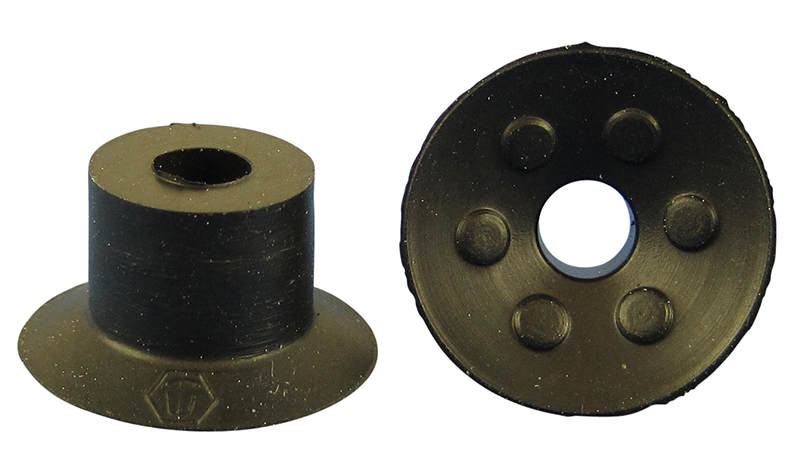

18mm flat NBR suction cup with cleats
General Specifications
Style: Flat Cleats: Yes Material: NBR Thread Size: None Outside Diameter: 18.0mm Weight(lbs): 0.0002 Color: Black Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 011812A
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
0.47 lbs. |
0.23 lbs. |
18"Hg |
1.41 lbs. |
0.70 lbs. |
27"Hg |
2.12 lbs. |
1.06 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 011812A
Related CAD files of Product
Dimensional drawing for Item: 011812A
Click on the image to enlarge
Parts and accessories for Suction Cup: 011812A
No parts or accessories related to this item were found.
