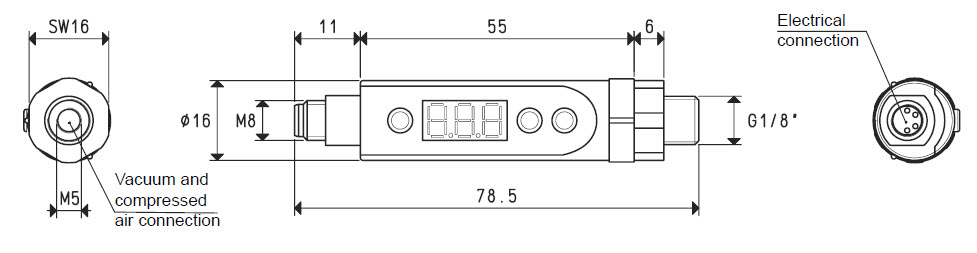

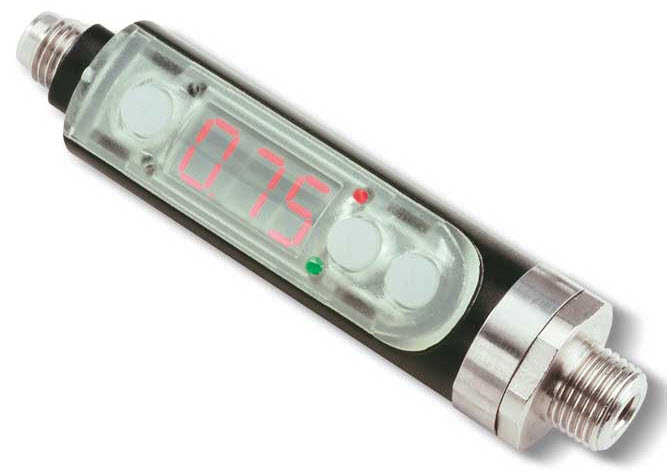

Home > Products > Vacuum Sensors > 12 10 10 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 12 10 10 - 2 Digital PNP,NO or NC,G1/8 Male Vacuum Connectio... (Full Description below) Item#: 12 10 10 Price: $473.02 ea. 2 Digital PNP,NO or NC,G1/8 Male Vacuum Connection, M8 - 4 pin Connector. Micro digital vacuum switch. General Specifications Type: Digital Connection Thread: G1/8" Adjustment range -inHg: 0 to -1 bar Output: 2 Digital PNP Hysteresis -inHg: Adj to full scale Product weight(lbs): 0.0441 Additional Information Dimensional drawing for Item: 12 10 10                                Click on the image to enlarge Parts and accessories for Item: 12 10 10                                Items: Bellows Suction Cups General Specifications Bellows vacuum suction cups handle objects with height differences and varying shape while supplying a lifting movement for separating thin materials. Materials: NBR, Silicone,Natural Rubber, Vinyl or Polyurethane See all Bellows Cups Sample Dimensional Drawing for Bellows Style Suction Cup Items: Flat Suction Cups General Specifications Flat vacuum cups are typically designed to handle flat or slightly curved surfaces. Available with or without cleats. Materials: NBR, Silicone or Polyurethane See all Flat Cups Sample Dimensional Drawing for Flat Style Suction Cup Items: Oval Suction Cups General Specifications Oval vacuum cups are ideal for handling narrow work pieces. Available in flat or bellows styles. Materials: NBR, Silicone or BENZ See all Oval Cups Sample Dimensional Drawing for Oval Style Suction Cup
