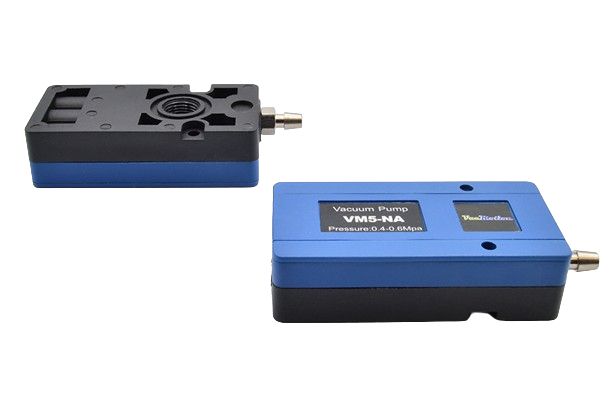

Item: VM5-NA - Mini multi stage vacuum generator. M5 air inlet,... (Full Description below)
| |
Item#: VM5-NA
Price: $38.19 ea.
|
Mini multi stage vacuum generator. M5 air inlet, 1/8 NPSF vacuum port. 1.23 scfm vacuum flow and 25.1 Hg
General Specifications
Vacuum Flow(SCFM): 1.2
Vacuum Port: 1/8" NPSF
Supply Port: M5
Air Consumption: .42
Max Vac -inHg": 25
Weight(lbs)": 0.072
 Recommended replacement for: 0102865, M5A5-AN, M5L, VM5-AN, M5A6-AN, 3222007/1, 3222007
|
|
|
|
Additional Information No additional information available for this item CAD files for this Product N/A
| Supply Press (PSI) |
Max Vacuum "Hg |
0"Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
| 65 |
25.1 |
1.23 |
0.72 |
0.42 |
0.37 |
0.30 |
0.23 |
0.16 |
0.09 |
0.02 |
|
| Supply Press (PSI) |
Max Vacuum "Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
| 65 |
25.1 |
3.12 |
11.93 |
26.98 |
47.14 |
71.00 |
103.66 |
149.10 |
224.07 |
|
| Supply Press (Bar) |
Air Cons L/min |
Max Vacuum "Hg |
0 Kpa |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 4.5 |
12 |
25 |
35 |
20.5 |
12 |
10.5 |
8.5 |
6.5 |
4.5 |
2.5 |
0.8 |
|
| Supply Press (Bar) |
Max Vacuum "Hg |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 4.5 |
25.1 |
0.42 |
0.95 |
1.66 |
2.50 |
1.65 |
5.25 |
7.89 |
0.11 |
|
Dimensional drawing for Item: VM5-NA
Click on the image to enlarge
Parts and accessories for Item: VM5-NA
|
|
Sample Dimensional Drawing for Vacuum Regulators
|
|
|---|
|
