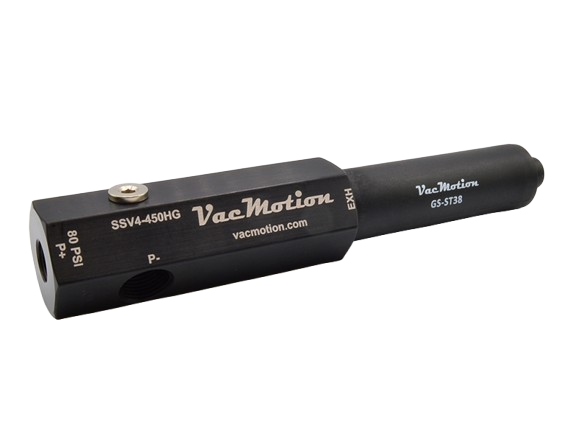

Home > Products > Vacuum Generators > SSV4-450HG Product DetailsDimensional DrawingParts & Accessories Quantity: Item: SSV4-450HG - Vacuum Generator, Hex Style, w/Straight Though Si... (Full Description below) Item#: SSV4-450HG Price: $185.00 ea. Vacuum Generator, Hex Style, w/Straight Though Silencer, 27Hg, 4.5 SCFM, BSPP General Specifications Vacuum Flow(SCFM): 4.5 Vacuum Port: G3/8" Supply Port: G1/4" Air Consumption: 7.70 Max Vac -inHg": Weight(lbs)": .5175   Recommended replacement for: I-JS-200-ST6A, NJSM-200, I-VP80-200H-ST6A, NVPM80-200H Additional Information No additional information available for this item CAD files for this Product Vacuum flow(scfm at vac level)Evacuation time(s/cf to vac level)Vacuum flow(Nl/s at vac level)Evacuation time(s/l to vac level) Supply Press (PSI) Max Vacuum "Hg 0"Hg 3"Hg 6"Hg 9"Hg 12"Hg 15"Hg 18"Hg 21"Hg 24"Hg 27"Hg 80 27 4.50 4.20 3.80 3.65 3.20 2.70 2.30 2.10 1.35 0.00 Supply Press (PSI) Max Vacuum "Hg 3"Hg 6"Hg 9"Hg 12"Hg 15"Hg 18"Hg 21"Hg 24"Hg 27"Hg 80 27.0 .95 2.22 3.72 5.68 8.49 12.48 18.51 28.71 55.63 Supply Press (Bar) Air Cons L/min Max Vacuum "Hg 0 Kpa 10 Kpa 20 Kpa 30 Kpa 40 Kpa 50 Kpa 60 Kpa 70 Kpa 80 Kpa 90 Kpa Supply Press (Bar) Max Vacuum "Hg 10 Kpa 20 Kpa 30 Kpa 40 Kpa 50 Kpa 60 Kpa 70 Kpa 80 Kpa 90 Kpa Dimensional drawing for Item: SSV4-450HG                                Click on the image to enlarge Parts and accessories for Item: SSV4-450HG                                Items: Various Vacuum Regulators General Specifications VacMotion carries many Vacuum Regulators for Many Vacuum Generators of both Single and Multi-stage types. See all Vacuum Regulators Sample Dimensional Drawing for Vacuum Regulators Items: See All VacMotion Products
