Item#: PF50-SIR
Price: $14.11 ea.
|

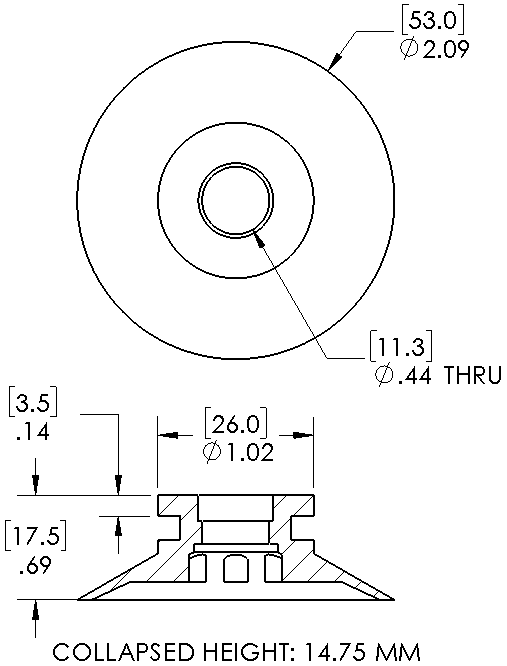

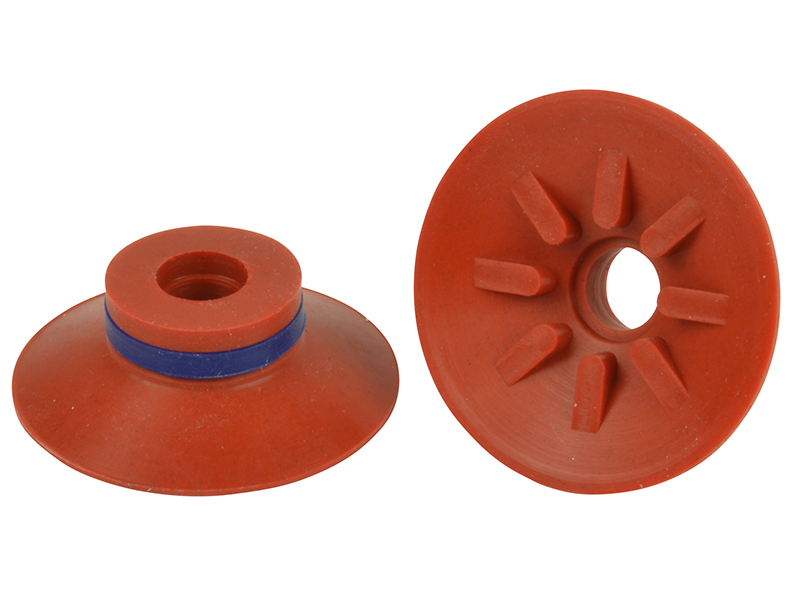

53mm flat Silicone suction cup with cleats
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: None
Outside Diameter: 53.0mm
Weight(lbs): 0.025
Color: Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PF50-SIR
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
4.10 lbs. |
2.05 lbs. |
| 18"Hg |
12.31 lbs. |
6.15 lbs. |
| 27"Hg |
18.46 lbs. |
9.23 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: 0101138, 3150241S, XP-F50S, GSV F50 20, 1431 , F50-2.20, 10.053.100.02R, S.F502S50. XXX.00, S.F502S50. XXX.00 |
|
|
|
