Item: PB40-NBR - 40mm single bellows NBR suction cup
| |
Item#: PB40-NBR
Price: $5.11 ea.
|

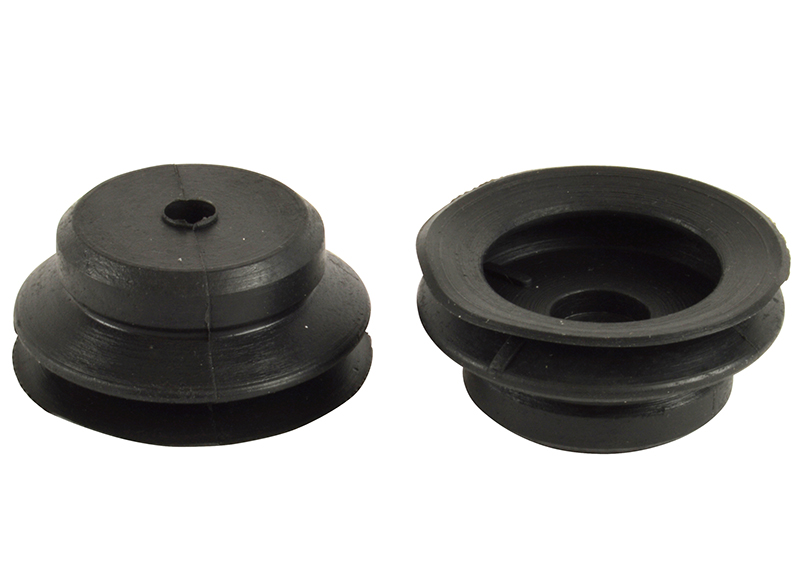

40mm single bellows NBR suction cup
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: None
Bellows: 1.5
Outside Diameter: 40.0mm
Weight(lbs): 0.012
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PB40-NBR
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
2.33 lbs. |
1.16 lbs. |
| 18"Hg |
7.01 lbs. |
3.50 lbs. |
| 27"Hg |
10.51 lbs. |
5.25 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: PJG-40-NBR, C-BS1.5-40-NBR, 210.040.153.01 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos available for: PB40-NBR
No CAD files available for this Product
