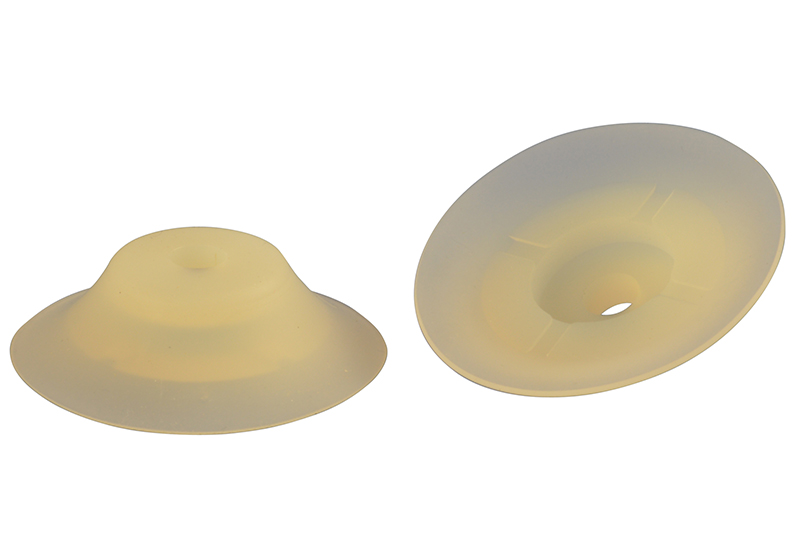

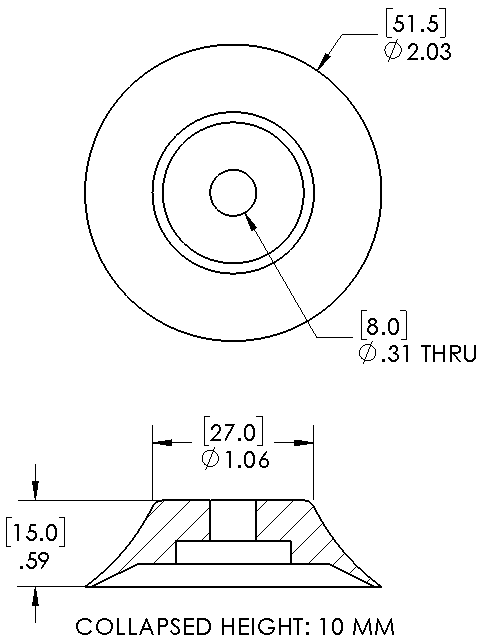

Home > Products > Suction Cups > PA50-SIT Product DetailsDimensional DrawingParts & Accessories Quantity: Item: PA50-SIT - 50mm flat FDA Silicone suction cup Item#: PA50-SIT Price: $5.67 ea. 50mm flat FDA Silicone suction cup General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: None Outside Diameter: 50.0mm Weight(lbs): 0.024 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item PA50-SIT    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 3.65 lbs. 1.82 lbs. 18"Hg 10.95 lbs. 5.47 lbs. 27"Hg 16.43 lbs. 8.21 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: PFG-50-SI, VPG50SI, PFG 50 SI-55 N008, 10.01.01.00037 , C-F50-SIT, 102.050.065.2, VN1 50 S, 3223 , C-PFG50-SIT, 3223 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: PA50-SIT No CAD files available for this Product Dimensional drawing for Item: PA50-SIT                                Click on the image to enlarge Parts and accessories for Suction Cup: PA50-SIT                                No parts or accessories related to this item were found.
