Item: MB35P-3060 - 35mm 2.5 bellows dual durometer Polyurethane suct... (Full Description below)
| |
Item#: MB35P-3060
Price: $17.59 ea.
|

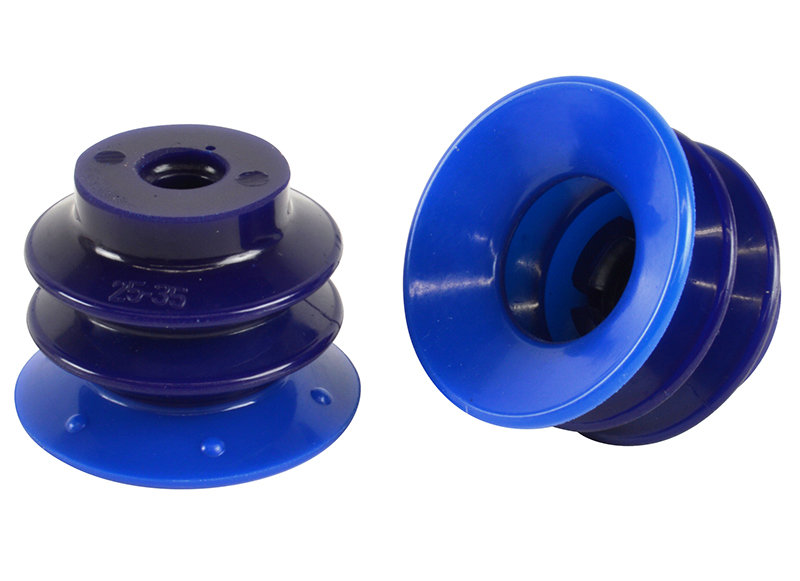

35mm 2.5 bellows dual durometer Polyurethane suction cup
General Specifications
Style: Bellows
Cleats: No
Material: Polyurethane
Thread Size: None
Bellows: 2.5
Outside Diameter: 35.0mm
Weight(lbs): .0165
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB35P-3060
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.78 lbs. |
0.89 lbs. |
| 18"Hg |
5.36 lbs. |
2.68 lbs. |
| 27"Hg |
8.05 lbs. |
4.02 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: BX35P.4K, 0106619, 0106292, XP-2B35, GSV BDD 35, 1826 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Polyurethane |
Excellent |
Excellent |
Excellent |
50 to 122 °F (10 to 50 °C) |
Video of Product in Action  No Videos available for: MB35P-3060 No CAD files available for this Product
Dimensional drawing for Item: MB35P-3060
Click on the image to enlarge
Parts and accessories for Suction Cup: MB35P-3060

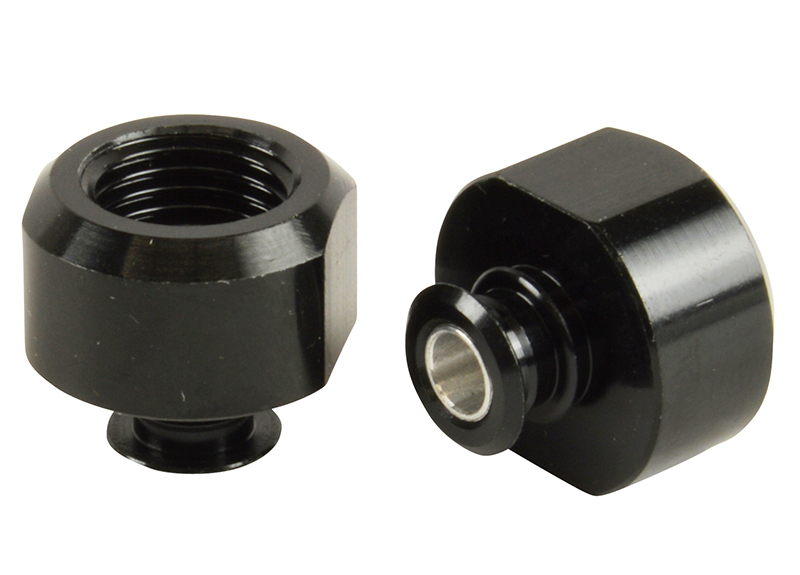

Fitting Image for 25040-21 |
General Specifications
Material: Aluminum
Weight: .0160(lbs)
Dimensions: G1/4" female
Price: $5.83 each
Description: G1/4 female fitting with filter screen for P series 30-2 and 40 cups
Add to Cart
|
Dimensional Fitting Drawing for 25040-21 |
|
|---|
Fitting Image for 402.011 |
General Specifications
Material: Aluminum
Weight: .0160(lbs)
Dimensions: G1/4" male
Price: $6.30 each
Description: G1/4 male fitting with filter screen for P series 30-2 and 40 cups
Add to Cart
|
Dimensional Fitting Drawing for 402.011 |
|
|---|

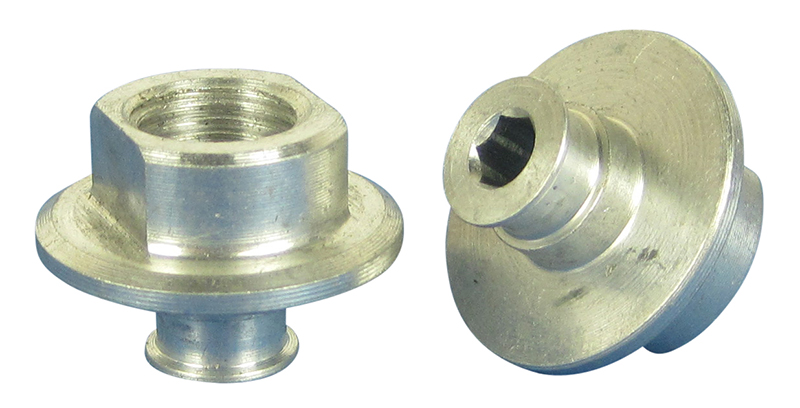

Fitting Image for 130.251 |
General Specifications
Material: Aluminum
Weight: .0085(lbs)
Dimensions: G1/8" female
Price: $3.97 each
Description: 1-piece fitting for P series 40 cups, G1/8 female
Add to Cart
|
Dimensional Fitting Drawing for 130.251 |
|
|---|
Fitting Image for SCF40-G18FS |
General Specifications
Material: Aluminum
Weight: .0130(lbs)
Dimensions: G1/8" female
Price: $6.90 each
Description: G1/8 female fitting with screen. 40 series suction cups
Add to Cart
|
Dimensional Fitting Drawing for SCF40-G18FS |
|
|---|
Fitting Image for 25040-21 |
General Specifications
Material: Aluminum
Weight: .0160(lbs)
Dimensions: G1/4" female
Price: $5.83 each
Description: G1/4 female fitting with filter screen for P series 30-2 and 40 cups
Add to Cart
|
Dimensional Fitting Drawing for 25040-21 |
|
|---|
Fitting Image for 402.011 |
General Specifications
Material: Aluminum
Weight: .0160(lbs)
Dimensions: G1/4" male
Price: $6.30 each
Description: G1/4 male fitting with filter screen for P series 30-2 and 40 cups
Add to Cart
|
Dimensional Fitting Drawing for 402.011 |
|
|---|
Fitting Image for 130.251 |
General Specifications
Material: Aluminum
Weight: .0085(lbs)
Dimensions: G1/8" female
Price: $3.97 each
Description: 1-piece fitting for P series 40 cups, G1/8 female
Add to Cart
|
Dimensional Fitting Drawing for 130.251 |
|
|---|
Fitting Image for SCF40-G18FS |
General Specifications
Material: Aluminum
Weight: .0130(lbs)
Dimensions: G1/8" female
Price: $6.90 each
Description: G1/8 female fitting with screen. 40 series suction cups
Add to Cart
|
Dimensional Fitting Drawing for SCF40-G18FS |
|
|---|
|
