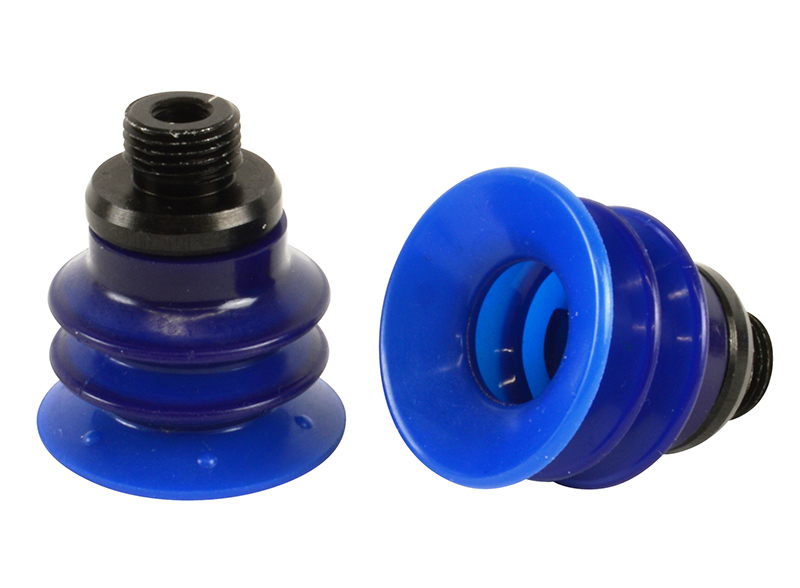

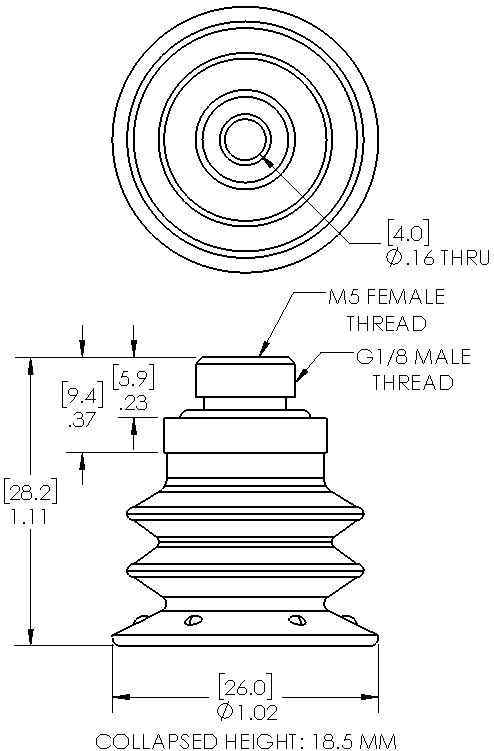

Home > Products > Suction Cups > MB25P-3060-G18M Product DetailsDimensional DrawingParts & Accessories Quantity: Item: MB25P-3060-G18M - 26mm 2.5 bellows dual durometer Polyurethane suct... (Full Description below) Item#: MB25P-3060-G18M Price: $17.50 ea. 26mm 2.5 bellows dual durometer Polyurethane suction cup with G1/8 male fitting General Specifications Style: Bellows Cleats: No Material: Polyurethane Thread Size: 1/8" male Bellows: 2.5 Outside Diameter: 26.0mm Weight(lbs): 0.0112 Color: Blue Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item MB25P-3060-G18M    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.98 lbs. 0.49 lbs. 18"Hg 2.96 lbs. 1.48 lbs. 27"Hg 4.44 lbs. 2.22 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES   Recommended replacement for: BX25P.4K.02AD, 0109402 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Polyurethane Excellent Excellent Excellent 50 to 122 °F (10 to 50 °C) Video of Product in Action No Videos available for: MB25P-3060-G18M No CAD files available for this Product Dimensional drawing for Item: MB25P-3060-G18M                                Click on the image to enlarge Parts and accessories for Suction Cup: MB25P-3060-G18M                                Fitting Image for 401.003 Item#: 401.003 compatible with cup #MB25P-3060-G18M General Specifications Material: Aluminum Weight: .0060(lbs) Dimensions: G1/8" male Description: G1/8 Male flange/barb fitting, with M5 female, o-ring *This fitting is included with the cup(MB25P-3060-G18M) Dimensional Fitting Drawing for 401.003 Fitting Image for 401.011 Item#: 401.011 compatible with cup #MB25P-3060-G18M General Specifications Material: Aluminum Weight: .0055(lbs) Dimensions: G1/8" male Description: G1/8 male fitting with screen for P series 20-30 Dimensional Fitting Drawing for 401.011 Fitting Image for 401.003 Item#: 401.003 compatible with cup #MB25P-3060-G18M General Specifications Material: Aluminum Weight: .0060(lbs) Dimensions: G1/8" male Description: G1/8 Male flange/barb fitting, with M5 female, o-ring Dimensional Fitting Drawing for 401.003 Fitting Image for 401.011 Item#: 401.011 compatible with cup #MB25P-3060-G18M General Specifications Material: Aluminum Weight: .0055(lbs) Dimensions: G1/8" male Description: G1/8 male fitting with screen for P series 20-30 Dimensional Fitting Drawing for 401.011
