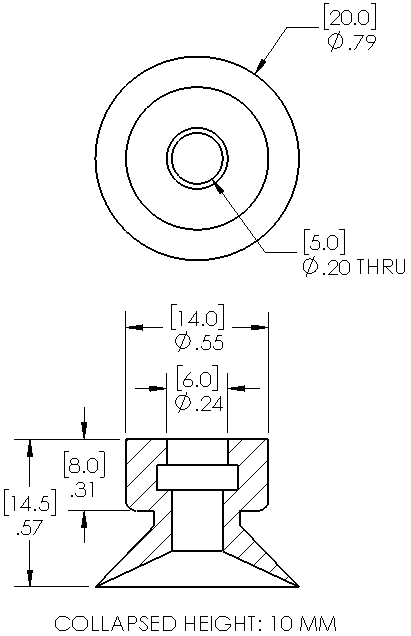

Home > Products > Suction Cups > 012014N Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 012014N - 20mm flat Natural Rubber suction cup Item#: 012014N Price: $5.21 ea. 20mm flat Natural Rubber suction cup General Specifications Style: Flat Cleats: No Material: Natural Rubber Thread Size: None Outside Diameter: 20.0mm Weight(lbs): 0.003 Color: Red Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 012014N    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.58 lbs. 0.29 lbs. 18"Hg 1.75 lbs. 0.87 lbs. 27"Hg 2.62 lbs. 1.31 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Natural Rubber Excellent Poor Good -94 to 176 °F (-70 to 80 °C) Video of Product in Action No Videos available for: 012014N No CAD files available for this Product Dimensional drawing for Item: 012014N                                Click on the image to enlarge Parts and accessories for Suction Cup: 012014N                                No parts or accessories related to this item were found.
