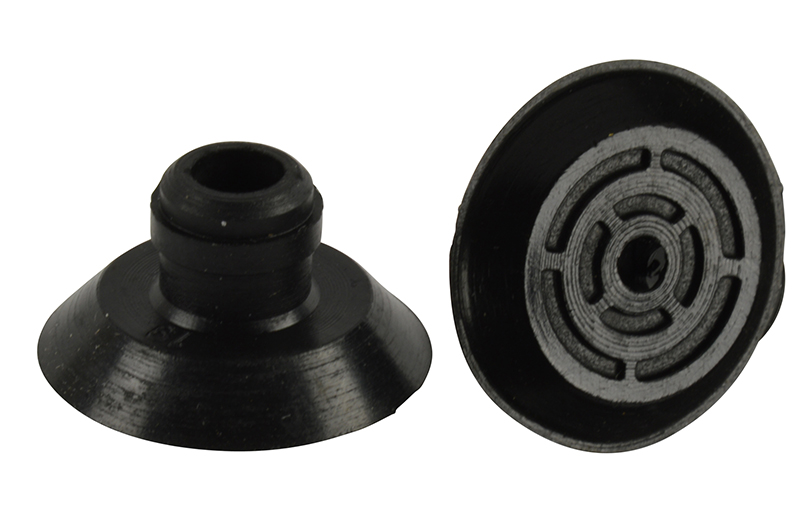

Home > Products > Suction Cups > 10.021.601.02A Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10.021.601.02A - 21mm flat anti-static Silicone suction cup with c... (Full Description below) Item#: 10.021.601.02A Price: $5.51 ea. 21mm flat anti-static Silicone suction cup with cleats General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: None Outside Diameter: 21.0mm Weight(lbs): 0.0015 Color: Black Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10.021.601.02A    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.64 lbs. 0.32 lbs. 18"Hg 1.93 lbs. 0.96 lbs. 27"Hg 2.89 lbs. 1.44 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 10.021.601.02A No CAD files available for this Product Dimensional drawing for Item: 10.021.601.02A                                Click on the image to enlarge Parts and accessories for Suction Cup: 10.021.601.02A                                No parts or accessories related to this item were found.
