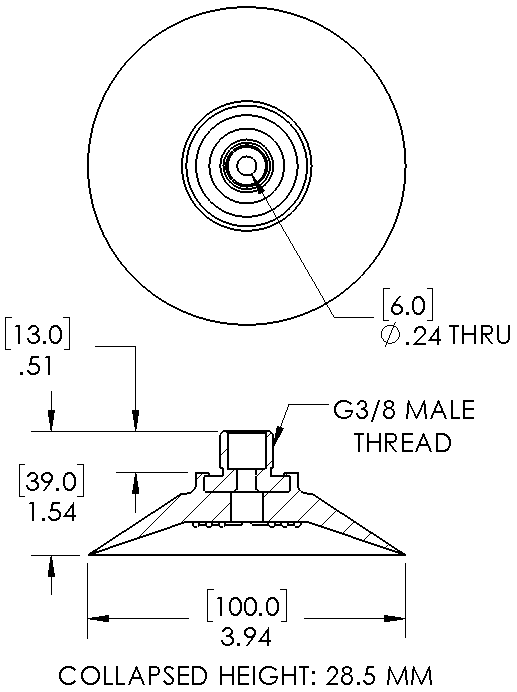

Home > Products > Suction Cups > 0810040S Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 0810040S - 100mm flat silicone suction cup with, G3/8 male ... (Full Description below) Item#: 0810040S Price: $67.52 ea. 100mm flat silicone suction cup with, G3/8 male fitting General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: 3/8" male Outside Diameter: 100.0mm Weight(lbs): 0.172 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 0810040S    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 14.60 lbs. 7.30 lbs. 18"Hg 43.82 lbs. 21.91 lbs. 27"Hg 65.73 lbs. 32.86 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -58 to 572 °F (-50 to 300 °C) Video of Product in Action No Videos available for: 0810040S No CAD files available for this Product Dimensional drawing for Item: 0810040S                                Click on the image to enlarge Parts and accessories for Suction Cup: 0810040S                                No parts or accessories related to this item were found.
