Item: PSB30-2-SIR-G14MS - 34mm single bellows Silicone suction cup with G1/... (Full Description below)
| |
Item#: PSB30-2-SIR-G14MS
Price: $16.79 ea.
|

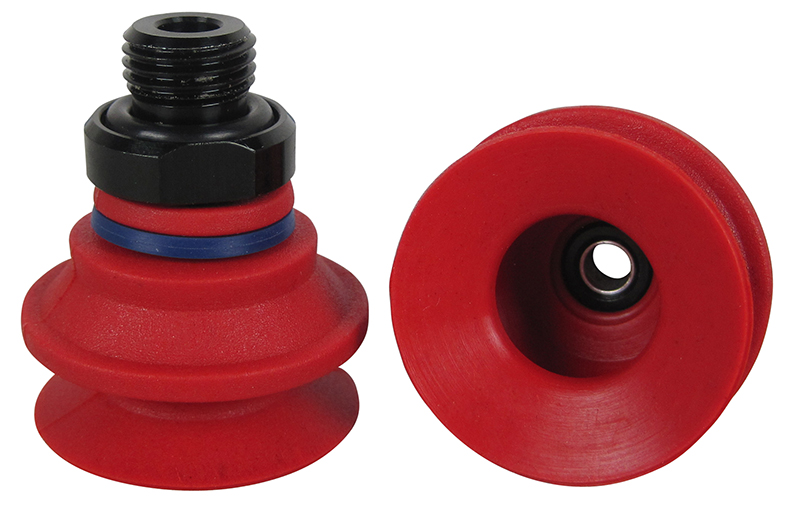

34mm single bellows Silicone suction cup with G1/4 male fitting with screen
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: 1/4" male
Bellows: 1.5
Outside Diameter: 34.0mm
Weight(lbs): 0.0254
Color: Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PSB30-2-SIR-G14MS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.68 lbs. |
0.84 lbs. |
| 18"Hg |
5.06 lbs. |
2.53 lbs. |
| 27"Hg |
7.59 lbs. |
3.79 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: B30-2.20.04AB, VSAB30SIIM14, 0101431, VB30-S-14M |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos available for: PSB30-2-SIR-G14MS
