Quantity:
Item: PSB40-NBR-G18F - 42mm single bellows NBR suction cup with G1/8 fem... (Full Description below)
| |
Item#: PSB40-NBR-G18F
Price: $13.23 ea.
|

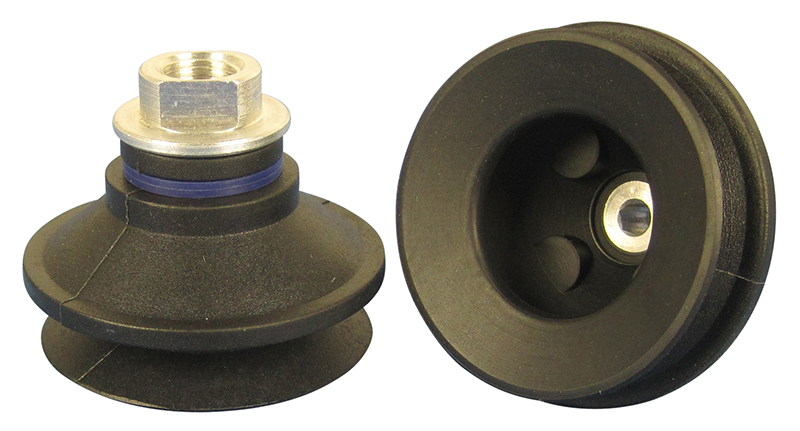

42mm single bellows NBR suction cup with G1/8 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: 1/8" female
Bellows: 1.5
Outside Diameter: 42.0mm
Weight(lbs): 0.038
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PSB40-NBR-G18F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
2.57 lbs. |
1.28 lbs. |
| 18"Hg |
7.73 lbs. |
3.86 lbs. |
| 27"Hg |
11.59 lbs. |
5.79 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: B40.10.04CA, B40-NEO/1PC FIT, A-3150027A, 31.50.027A, B40.10.04AA, 0109843 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action  No Videos available for: PSB40-NBR-G18F No CAD files available for this Product
Dimensional drawing for Item: PSB40-NBR-G18F
Click on the image to enlarge
Parts and accessories for Suction Cup: PSB40-NBR-G18F
Fitting Image for 130.251 |
General Specifications
Material: Aluminum
Weight: .0085(lbs)
Dimensions: G1/8" female
Description: 1-piece fitting for P series 40 cups, G1/8 female
*This fitting is included with the cup(PSB40-NBR-G18F)
|
Dimensional Fitting Drawing for 130.251 |
|
|---|
Fitting Image for SCF40-G18FS |
General Specifications
Material: Aluminum
Weight: .0130(lbs)
Dimensions: G1/8" female
Description: G1/8 female fitting with screen. 40 series suction cups
|
Dimensional Fitting Drawing for SCF40-G18FS |
|
|---|
|
