Item: PSB20-SIR-G18MS - 21mm single bellows Silicone suction cup with G1/... (Full Description below)
| |
Item#: PSB20-SIR-G18MS
Price: $9.64 ea.
|

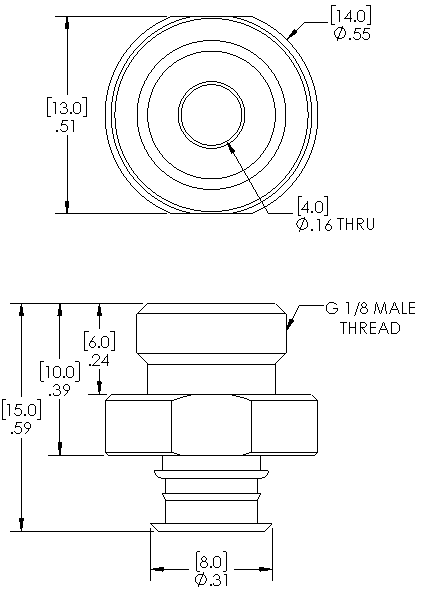

21mm single bellows Silicone suction cup with G1/8 male thread with fitting
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: 1/8" male
Bellows: 1.5
Outside Diameter: 21.0mm
Weight(lbs): 0.0112
Color: Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PSB20-SIR-G18MS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.64 lbs. |
0.32 lbs. |
| 18"Hg |
1.93 lbs. |
0.96 lbs. |
| 27"Hg |
2.89 lbs. |
1.44 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: B20.20.02AB, 0101172, S.B20S50.G18M.01 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
Click Video for Product: PSB20-SIR-G18MS
No CAD files available for this Product
