Quantity:

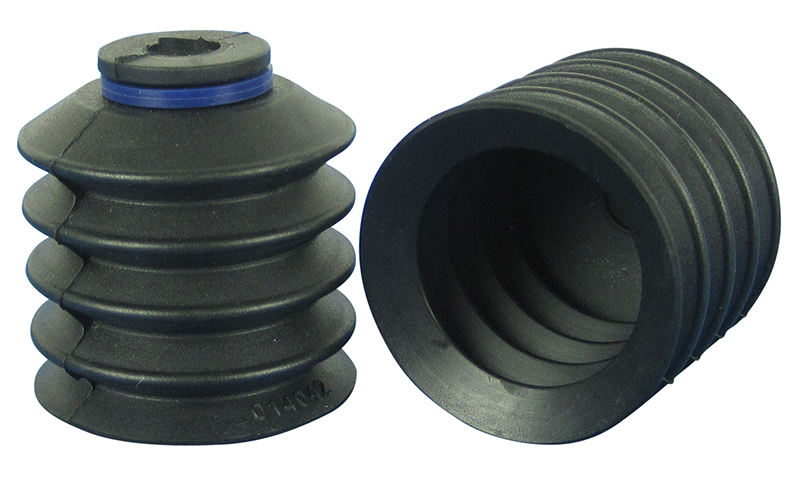

Item: PMB40-NBR - 41mm 4.5 bellows NBR suction cup
| |
Item#: PMB40-NBR
Price: $10.24 ea.
|
41mm 4.5 bellows NBR suction cup
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: None
Bellows: 4.5
Outside Diameter: 41.0mm
Weight(lbs): 0.033
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PMB40-NBR
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
2.45 lbs. |
1.22 lbs. |
| 18"Hg |
7.36 lbs. |
3.68 lbs. |
| 27"Hg |
11.05 lbs. |
5.52 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: CBL40NBR, VBL40-N, BL40-2.10, BL40-NEO, A-3150112, 0101119, 25.040.027.9, XP-BL40N, VFBL40-2N, VCR-BL40P-C, 240.040.004.01, S.BL402CR60. XXX.00 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action  No Videos available for: PMB40-NBR No CAD files available for this Product

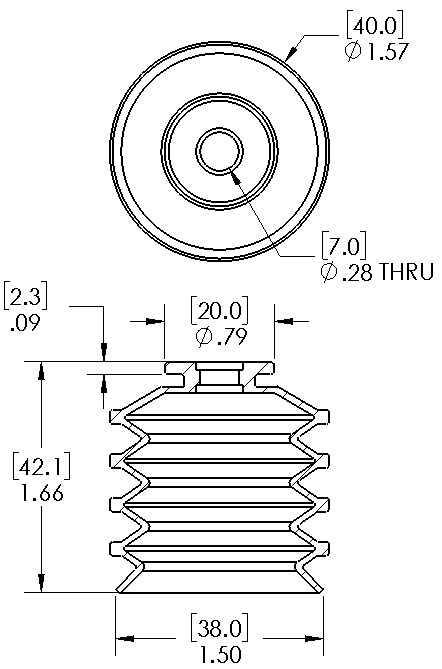

Dimensional drawing for Item: PMB40-NBR
Click on the image to enlarge
Parts and accessories for Suction Cup: PMB40-NBR
Fitting Image for 25040-21 |
General Specifications
Material: Aluminum
Weight: .0160(lbs)
Dimensions: G1/4" female
Price: $5.83 each
Description: G1/4 female fitting with filter screen for P series 30-2 and 40 cups
Add to Cart
|
Dimensional Fitting Drawing for 25040-21 |
|
|---|
Fitting Image for 402.011 |
General Specifications
Material: Aluminum
Weight: .0160(lbs)
Dimensions: G1/4" male
Price: $6.30 each
Description: G1/4 male fitting with filter screen for P series 30-2 and 40 cups
Add to Cart
|
Dimensional Fitting Drawing for 402.011 |
|
|---|
Fitting Image for 130.251 |
General Specifications
Material: Aluminum
Weight: .0085(lbs)
Dimensions: G1/8" female
Price: $3.97 each
Description: 1-piece fitting for P series 40 cups, G1/8 female
Add to Cart
|
Dimensional Fitting Drawing for 130.251 |
|
|---|
Fitting Image for SCF40-G18FS |
General Specifications
Material: Aluminum
Weight: .0130(lbs)
Dimensions: G1/8" female
Price: $6.90 each
Description: G1/8 female fitting with screen. 40 series suction cups
Add to Cart
|
Dimensional Fitting Drawing for SCF40-G18FS |
|
|---|
|
