Item: PF40-SIT-G14MS - 42mm flat FDA Silicone suction cup with cleats an... (Full Description below)
| |
Item#: PF40-SIT-G14MS
Price: $15.39 ea.
|

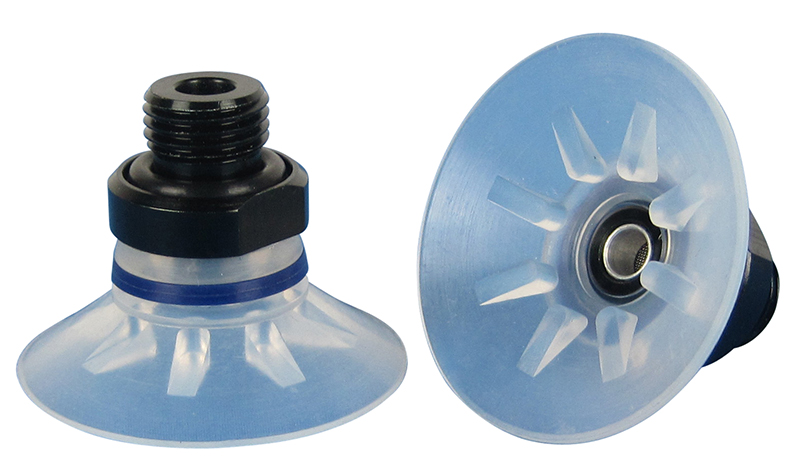

42mm flat FDA Silicone suction cup with cleats and G1/4 male fitting with screen
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/4" male
Outside Diameter: 42.0mm
Weight(lbs): 0.03
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PF40-SIT-G14MS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
2.57 lbs. |
1.28 lbs. |
| 18"Hg |
7.73 lbs. |
3.86 lbs. |
| 27"Hg |
11.59 lbs. |
5.79 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: VPF40SIIM14, 9909628, F40-2.21.04AB, VPF40SIIM14C |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos available for: PF40-SIT-G14MS

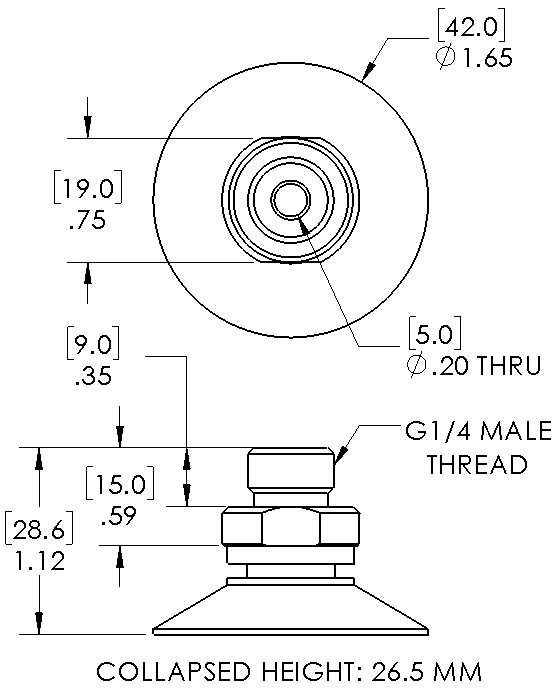

Related CAD files of Product
