Item: SB40P-3060-G18F - 42mm single bellows dual durometer (30/60 Shore A... (Full Description below)
| |
Item#: SB40P-3060-G18F
Price: $19.83 ea.
|

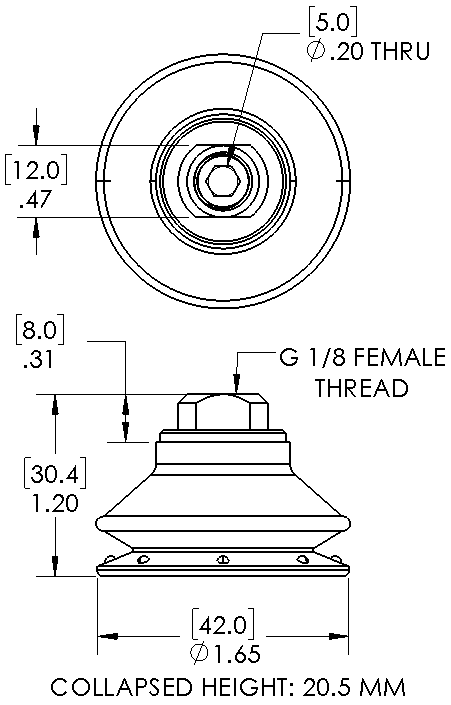

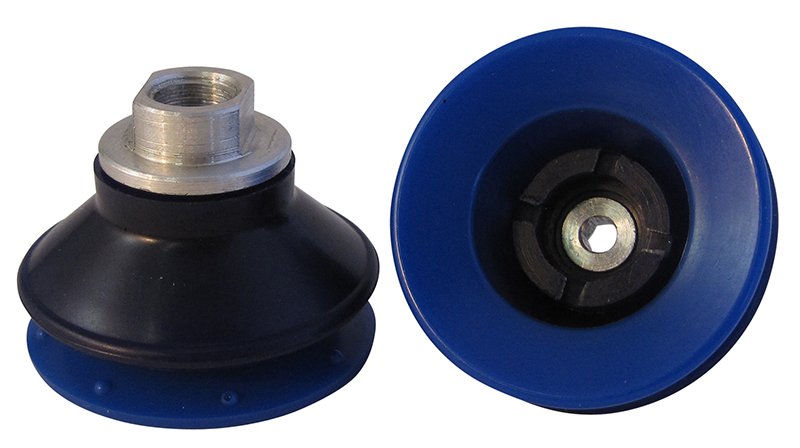

42mm single bellows dual durometer (30/60 Shore A) Polyurethane suction cup with G1/8 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: Polyurethane
Thread Size: 1/8" female
Bellows: 1.5
Outside Diameter: 42.0mm
Weight(lbs): 0.0305
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB40P-3060-G18F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
2.57 lbs. |
1.28 lbs. |
| 18"Hg |
7.73 lbs. |
3.86 lbs. |
| 27"Hg |
11.59 lbs. |
5.79 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Polyurethane |
Excellent |
Excellent |
Excellent |
50 to 122 °F (10 to 50 °C) |
