Quantity:
Item: SB20P-3060-G18MS - 21mm single bellows dual durometer (30/60) Polyur... (Full Description below)
| |
Item#: SB20P-3060-G18MS
Price: $13.65 ea.
|
21mm single bellows dual durometer (30/60) Polyurethane suction cup with G1/8 male fitting and screen
General Specifications
Style: Bellows
Cleats: No
Material: Polyurethane
Thread Size: 1/8" male
Bellows: 1.5
Outside Diameter: 21.0mm
Weight(lbs): 0.10
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB20P-3060-G18MS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.64 lbs. |
0.32 lbs. |
| 18"Hg |
1.93 lbs. |
0.96 lbs. |
| 27"Hg |
2.89 lbs. |
1.44 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Polyurethane |
Excellent |
Excellent |
Excellent |
50 to 122 °F (10 to 50 °C) |
Video of Product in Action
Click Video for Product: SB20P-3060-G18MS
No CAD files available for this Product

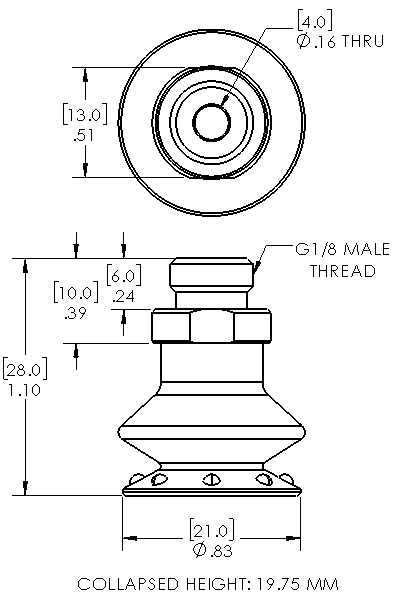

Dimensional drawing for Item: SB20P-3060-G18MS
Click on the image to enlarge
Parts and accessories for Suction Cup: SB20P-3060-G18MS
Fitting Image for 401.011 |
General Specifications
Material: Aluminum
Weight: .0055(lbs)
Dimensions: G1/8" male
Description: G1/8 male fitting with screen for P series 20-30
*This fitting is included with the cup(SB20P-3060-G18MS)
|
Dimensional Fitting Drawing for 401.011 |
|
|---|
