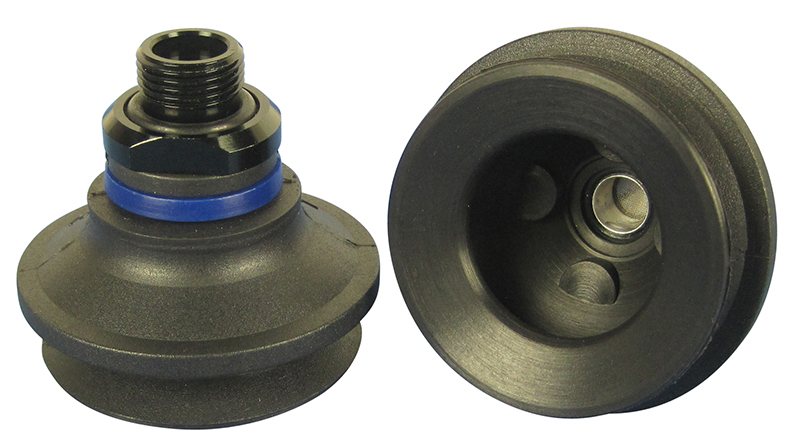

Home > Products > Suction Cups > PSB50-NBR-G38MS Product DetailsDimensional DrawingParts & Accessories Quantity: Item: PSB50-NBR-G38MS - 52mm single bellows NBR suction cup with G3/8 mal... (Full Description below) Item#: PSB50-NBR-G38MS Price: $17.07 ea. 52mm single bellows NBR suction cup with G3/8 male fitting and screen General Specifications Style: Bellows Cleats: No Material: NBR Thread Size: 3/8" male Bellows: 1.5 Outside Diameter: 52.0mm Weight(lbs): 0.785 Color: Black Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item PSB50-NBR-G38MS    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 3.95 lbs. 1.97 lbs. 18"Hg 11.85 lbs. 5.92 lbs. 27"Hg 17.77 lbs. 8.88 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES   Recommended replacement for: B50.30.05AD, B50-2.30.05AD, 0101646, 0101672, VB50-N-38M, VB50-N-F-38M Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C) Video of Product in Action No Videos available for: PSB50-NBR-G38MS Related CAD files of Product Dimensional drawing for Item: PSB50-NBR-G38MS                                Click on the image to enlarge Parts and accessories for Suction Cup: PSB50-NBR-G38MS                                Fitting Image for 403.011 Item#: 403.011 compatible with cup #PSB50-NBR-G38MS General Specifications Material: Nickel Plated Brass Weight: .0280(lbs) Dimensions: G 3/8" male Description: G 3/8 male fitting with filter screen for P series 50 cups *This fitting is included with the cup(PSB50-NBR-G38MS) Dimensional Fitting Drawing for 403.011
