Item: PF15-SIR-5M - 16.5mm flat Silicone suction cup with cleats and ... (Full Description below)
| |
Item#: PF15-SIR-5M
Price: $6.51 ea.
|

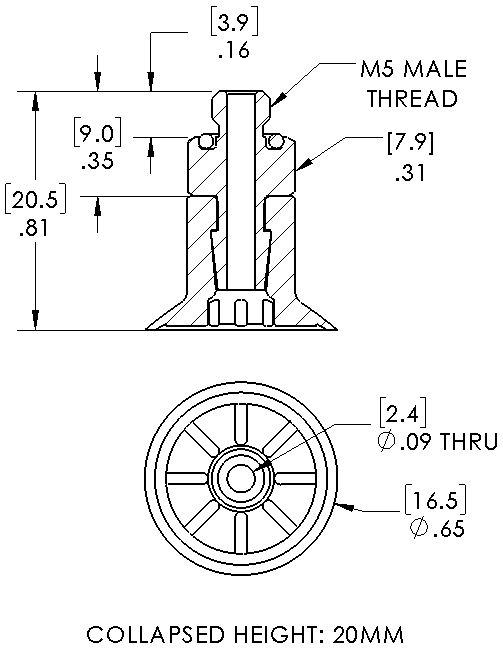

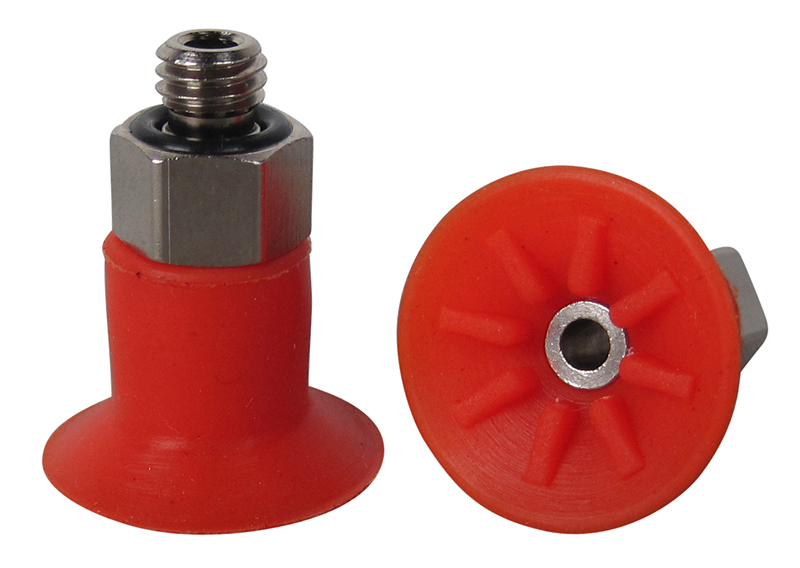

16.5mm flat Silicone suction cup with cleats and M5 male fitting
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: M5 male
Outside Diameter: 16.5mm
Weight(lbs): .0087
Color: Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PF15-SIR-5M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.39 lbs. |
0.19 lbs. |
| 18"Hg |
1.19 lbs. |
0.59 lbs. |
| 27"Hg |
1.78 lbs. |
0.89 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: F15.20.01AC, 3150014S, VF15-S-M5M |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos available for: PF15-SIR-5M
No CAD files available for this Product
