Item: 081010S - 10mm flat Silicone suction cup with G1/8 male fit... (Full Description below)
| |
Item#: 081010S
Price: $8.64 ea.
|

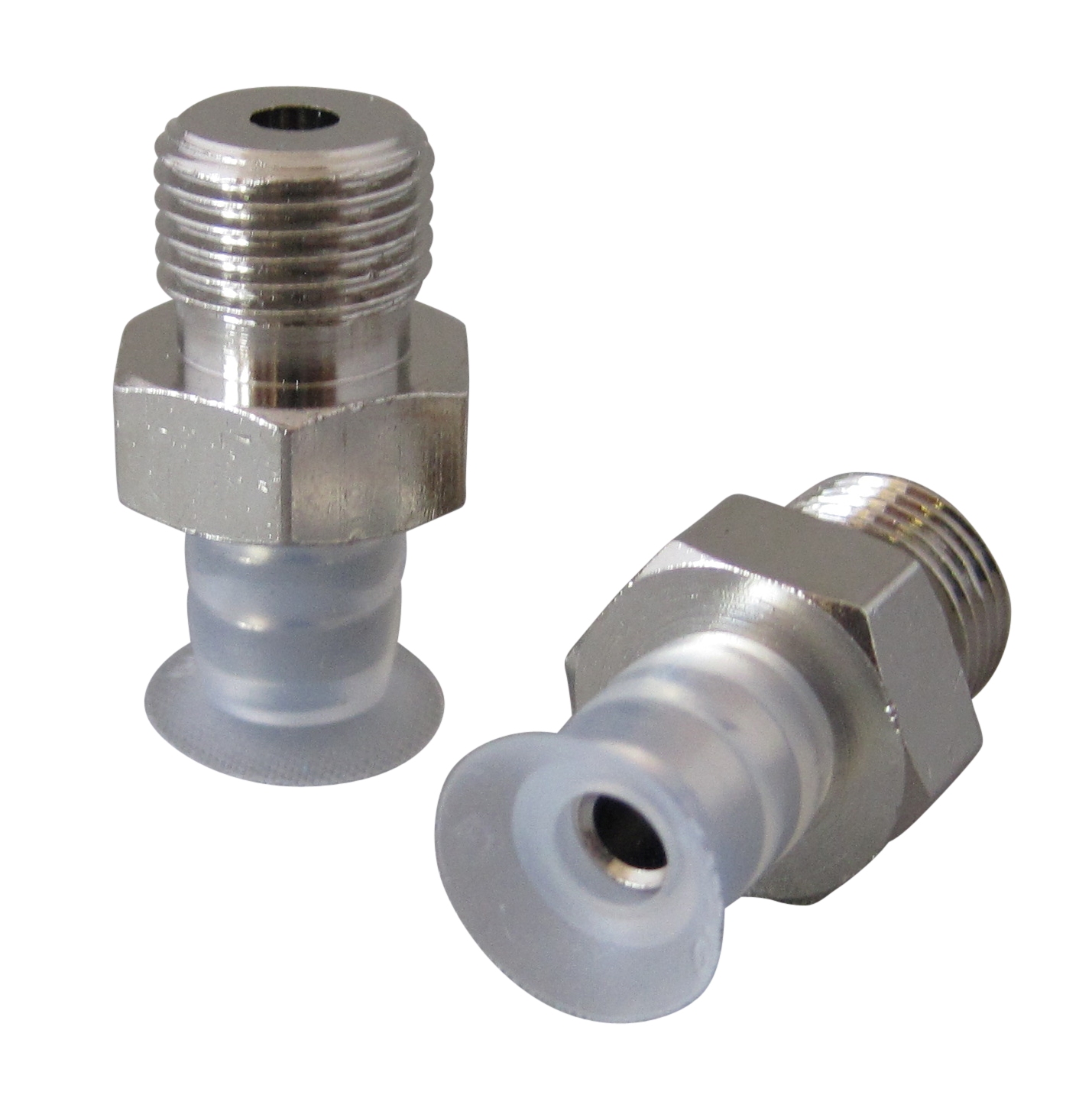

10mm flat Silicone suction cup with G1/8 male fitting
General Specifications
Style: Flat
Cleats: No
Material: Silicone
Thread Size: 1/8" male
Outside Diameter: 10.0mm
Weight(lbs): 0.0198
Color: White
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 081010S
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.14 lbs. |
0.07 lbs. |
| 18"Hg |
0.43 lbs. |
0.21 lbs. |
| 27"Hg |
0.65 lbs. |
0.32 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-58 to 572 °F (-50 to 300 °C) |
Video of Product in Action
No Videos available for: 081010S
