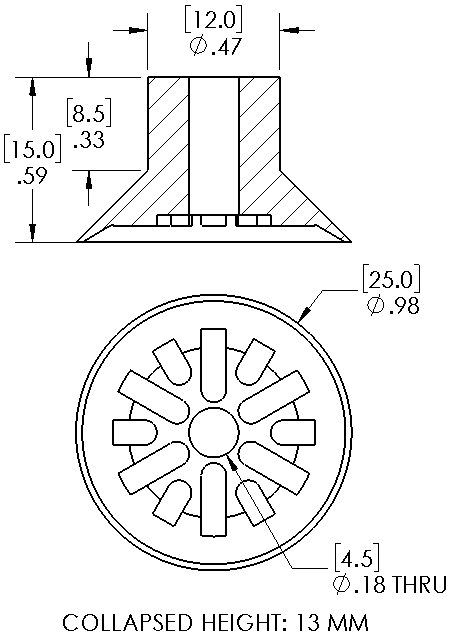

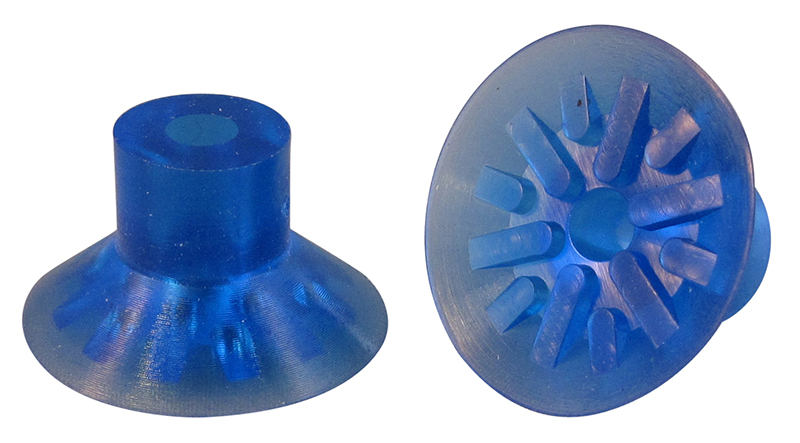

Home > Products > Suction Cups > 10.025.328.V Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10.025.328.V - 25mm flat Vinyl suction cup with cleats (VC 159) Item#: 10.025.328.V Price: $3.54 ea. 25mm flat Vinyl suction cup with cleats (VC 159) General Specifications Style: Flat Cleats: Yes Material: Vinyl Thread Size: None Outside Diameter: 25.0mm Weight(lbs): 0.0044 Color: Blue Vinyl Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10.025.328.V    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.91 lbs. 0.45 lbs. 18"Hg 2.73 lbs. 1.36 lbs. 27"Hg 4.10 lbs. 2.05 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: VC-159, 104.025.043.V Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Vinyl Excellent Good Poor -4 to 176 °F (-20 to 80 °C) Video of Product in Action No Videos available for: 10.025.328.V No CAD files available for this Product Dimensional drawing for Item: 10.025.328.V                                Click on the image to enlarge Parts and accessories for Suction Cup: 10.025.328.V                                No parts or accessories related to this item were found.
