Home > Products > Suction Cups > PA3.5x7-SIT

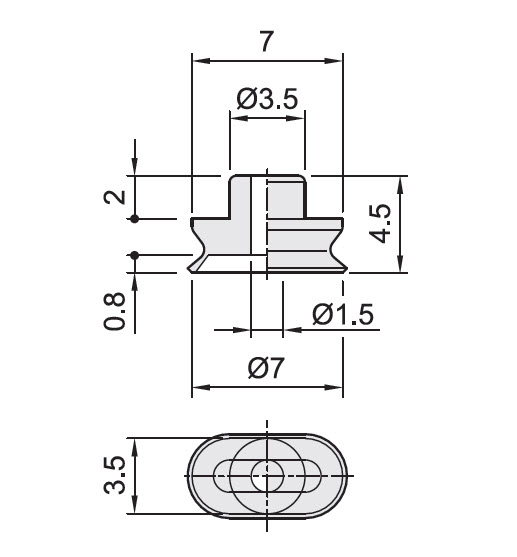

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item: PA3.5x7-SIT - 3.5mm x 7mm flat oval FDA Silicone suction cup
PA3.5x7-SIT


Item#: PA3.5x7-SIT
Price: $3.89 ea.





3.5mm x 7mm flat oval FDA Silicone suction cup

General Specifications

Style: Oval
Cleats: No
Material: Silicone
Thread Size: None
Outside Diameter1: 7.0mm
Outside Diameter2: 3.5mm
Weight(lbs): 0.00022
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item PA3.5x7-SIT



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.02 lbs. 0.01 lbs.
18"Hg 0.10 lbs. 0.05 lbs.
27"Hg 0.16 lbs. 0.08 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)

Video of Product in Action

Vacmotion Product Video
No Videos Available for: PA3.5x7-SIT
