Item: MB42-SIT-G14F - 42mm 2.5 bellows FDA Silicone suction cup with G1... (Full Description below)
| |
Item#: MB42-SIT-G14F
Price: $12.81 ea.
|

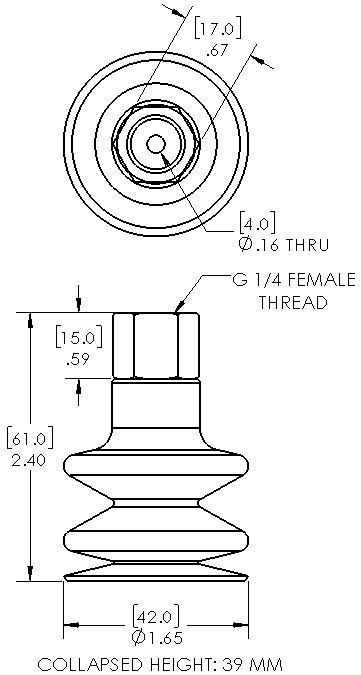

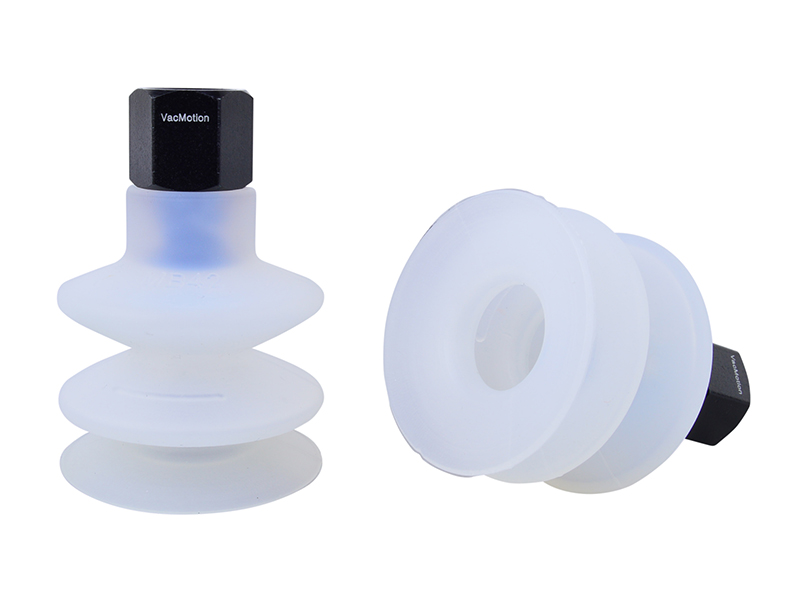

42mm 2.5 bellows FDA Silicone suction cup with G1/4 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: 1/4" female
Bellows: 2.5
Outside Diameter: 42.0mm
Weight(lbs): 0.57
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB42-SIT-G14F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
2.57 lbs. |
1.28 lbs. |
| 18"Hg |
7.73 lbs. |
3.86 lbs. |
| 27"Hg |
11.59 lbs. |
5.79 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: FSG 42 SI-55 G1/4-IG, 10.01.06.00016 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos available for: MB42-SIT-G14F
No CAD files available for this Product
