Item#: MB32-SIT
Price: $7.35 ea.
|

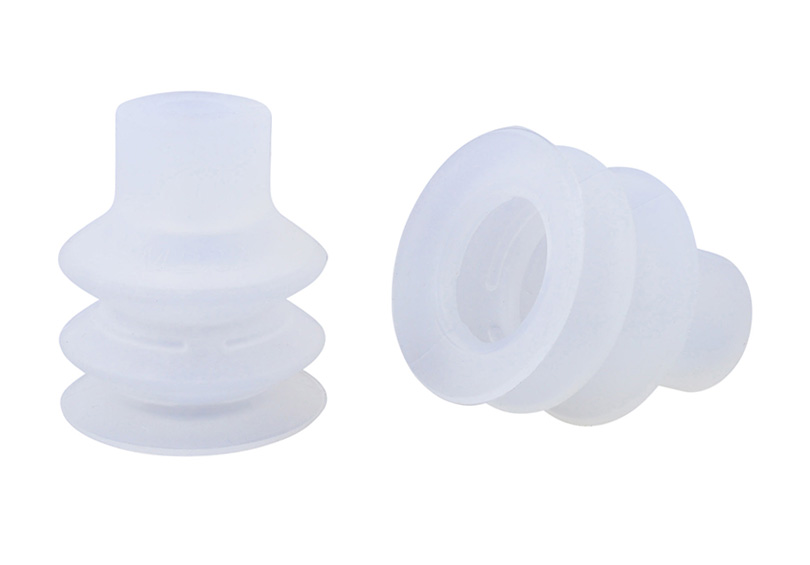

32mm 2.5 bellows FDA Silicone suction cup
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: None
Bellows: 2.5

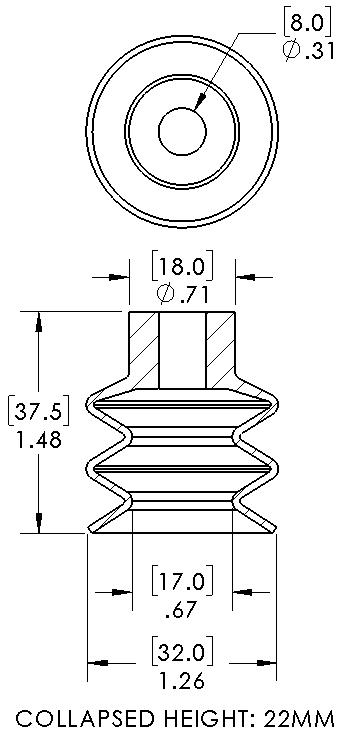

Outside Diameter: 32.0mm
Weight(lbs): 0.022
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB32-SIT
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.49 lbs. |
0.74 lbs. |
| 18"Hg |
4.48 lbs. |
2.24 lbs. |
| 27"Hg |
6.73 lbs. |
3.36 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: VS32SIT5, B2.5-32-SIT, PCG-30-NBR, PCG-30-SI, FG 32 SI-55 N018, 10.01.06.00144 , 21.032.075.2/4, 21.032.075.8, VN3 30 S, 3275 , VCC-B-126-S, 220.032.003.02 |
|
|
|
