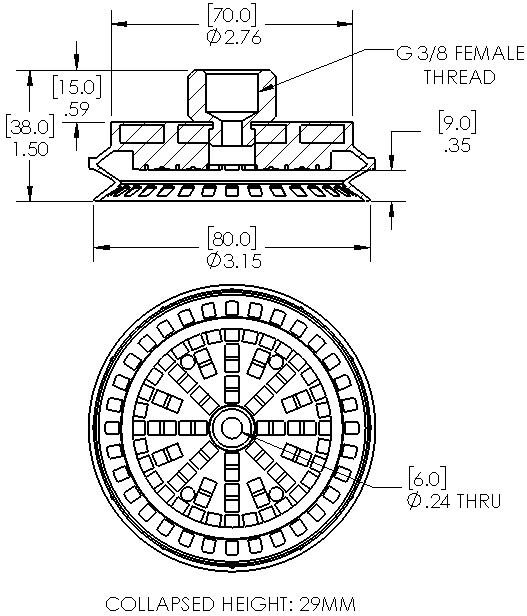

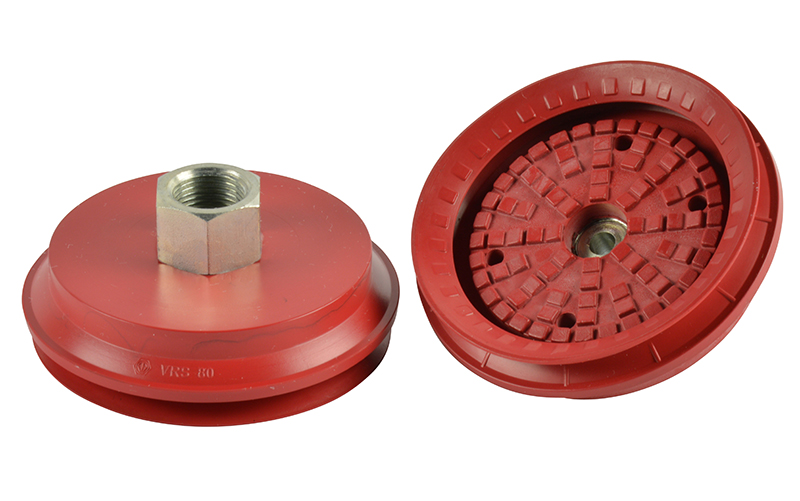

Home > Products > Suction Cups > VRS80B Product DetailsDimensional DrawingParts & Accessories Quantity: Item: VRS80B - 80mm single bellows BENZ rubber suction cup with ... (Full Description below) Item#: VRS80B Price: $117.35 ea. 80mm single bellows BENZ rubber suction cup with G3/8 female fitting General Specifications Style: Bellows Cleats: Yes Material: BENZ Thread Size: 3/8" female Bellows: 1.5 Outside Diameter: 80.0mm Weight(lbs): 0.454 Color: Red BENZ Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item VRS80B    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 9.34 lbs. 4.67 lbs. 18"Hg 28.04 lbs. 14.02 lbs. 27"Hg 42.07 lbs. 21.03 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range BENZ Excellent Excellent Good -40 to 338 °F (-40 to 170 °C) Video of Product in Action No Videos available for: VRS80B No CAD files available for this Product Dimensional drawing for Item: VRS80B                                Click on the image to enlarge Parts and accessories for Suction Cup: VRS80B                                No parts or accessories related to this item were found.
