Item#: SB53-SIT
Price: $12.60 ea.
|

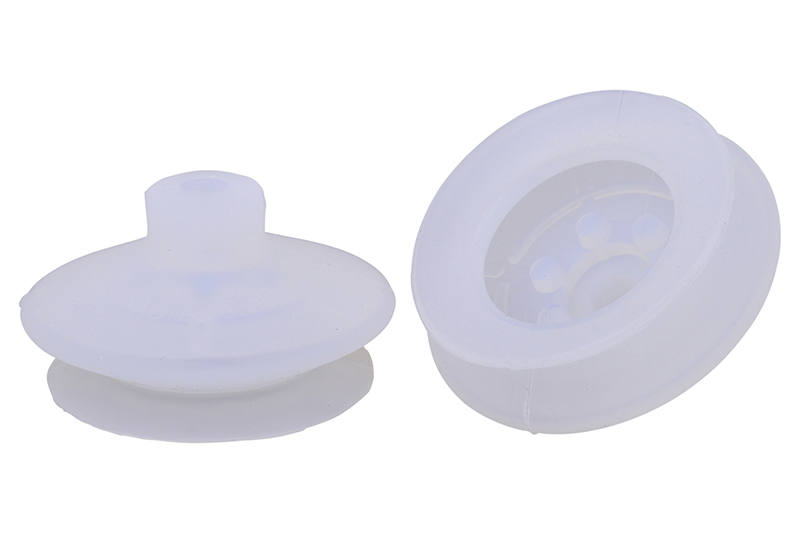

53mm single bellows FDA Silicone suction cup
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: None
Bellows: 1.5
Outside Diameter: 53.0mm
Weight(lbs): 0.042
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB53-SIT
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
4.10 lbs. |
2.05 lbs. |
| 18"Hg |
12.31 lbs. |
6.15 lbs. |
| 27"Hg |
18.46 lbs. |
9.23 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: VSA53SIT5, B1.5-53-SIT, FGA 53 SI-55 N018, 10.01.06.00128 , 23.053.033.2, VCC-B-209-S, 3766A33 |
|
|
|
