Quantity:
Item: PSB50-NBR-G18F - 52mm single bellows NBR suction cup wtih G1/8 fem... (Full Description below)
| |
Item#: PSB50-NBR-G18F
Price: $14.21 ea.
|
52mm single bellows NBR suction cup wtih G1/8 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: 1/8" female
Bellows: 1.5
Outside Diameter: 52.0mm
Weight(lbs): 0.066
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PSB50-NBR-G18F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
3.95 lbs. |
1.97 lbs. |
| 18"Hg |
11.85 lbs. |
5.92 lbs. |
| 27"Hg |
17.77 lbs. |
8.88 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: B50.30.05CA, B50-NEO/1PC FIT, A-3250035PA, 32.50.035PA, B50.30.05AA, B50-2.30.05AA, B50-2.30.05CA, 0111063, 0110957, 0101669 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action  No Videos available for: PSB50-NBR-G18F Related CAD files of Product
Dimensional drawing for Item: PSB50-NBR-G18F
Click on the image to enlarge
Parts and accessories for Suction Cup: PSB50-NBR-G18F
Fitting Image for 401.004 |
General Specifications
Material: Aluminum
Weight: .0190(lbs)
Dimensions: G1/8" female
Description: G1/8 Female flange fitting
*This fitting is included with the cup(PSB50-NBR-G18F)
|
Dimensional Fitting Drawing for 401.004 |
|
|---|
Fitting Image for SCF50-G18FS |
General Specifications
Material: Aluminum
Weight: .0315(lbs)
Dimensions: G1/8" female
Description: Fitting G1/8 female, 50, with mesh filter (05AG)
|

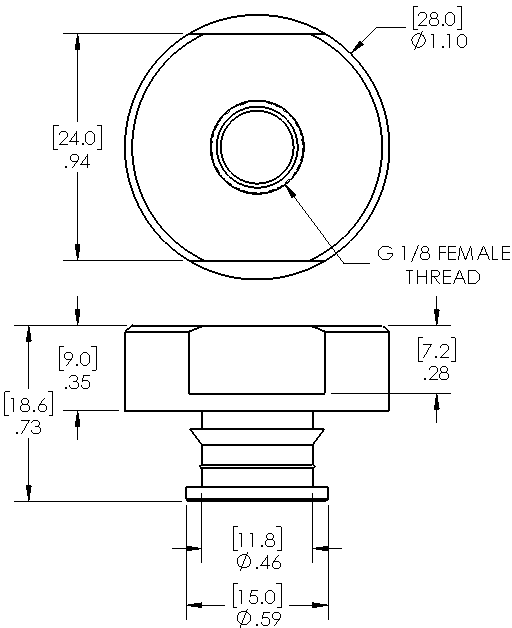

Dimensional Fitting Drawing for SCF50-G18FS |
|
|---|
|
