Item#: SB22-SIT
Price: $5.25 ea.
|

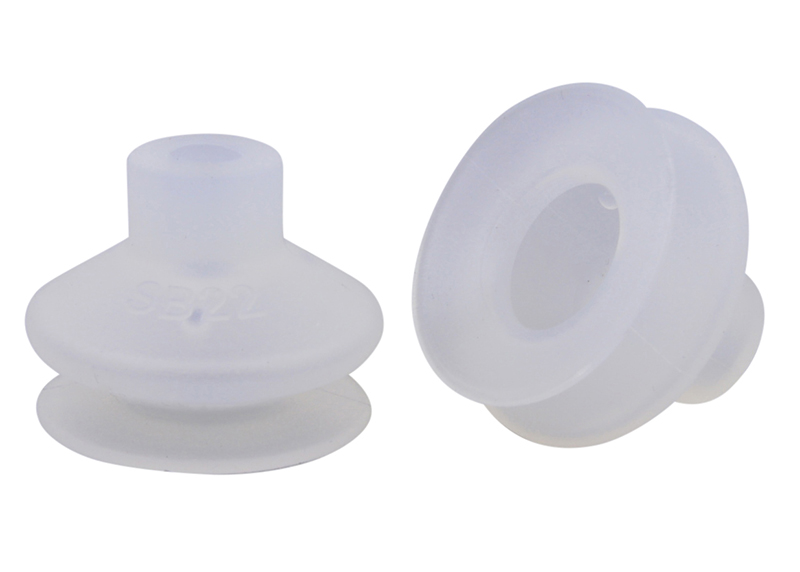

22mm single bellows FDA Silicone suction cup
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: None
Bellows: 1.5

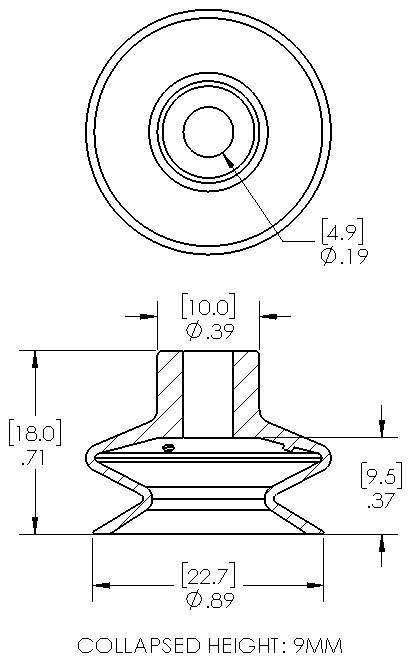

Outside Diameter: 22.0mm
Weight(lbs): 0.0044
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB22-SIT
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.70 lbs. |
0.35 lbs. |
| 18"Hg |
2.12 lbs. |
1.06 lbs. |
| 27"Hg |
3.18 lbs. |
1.59 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: VSA22SIT5, B1.5-22-SIT, FGA 22 SI-55 N016, 10.01.06.00100 , 23.022.028.2, VCC-B-087-S |
|
|
|
