Item: SB25P-3055-18M - 25mm single bellows Polyurethane suction cup (30/... (Full Description below)
| |
Item#: SB25P-3055-18M
Price: $15.41 ea.
|

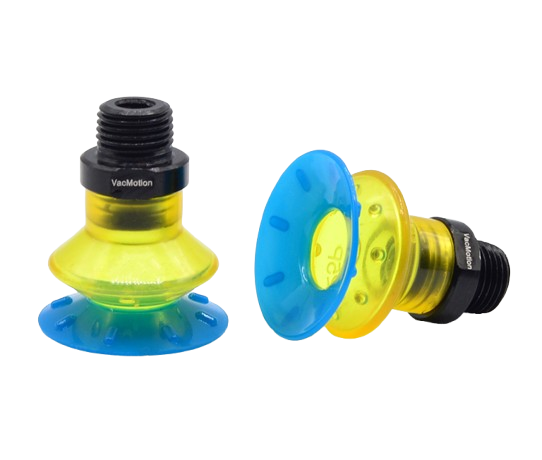

25mm single bellows Polyurethane suction cup (30/55 durometer) with low profile 1/8 Male NPT fitting
General Specifications
Style: Bellows
Cleats: Yes
Material: Polyurethane
Thread Size: 1/8" male
Bellows: 1.5
Outside Diameter: 25.0mm
Weight(lbs): .0100
Color: Yellow
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB25P-3055-18M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.91 lbs. |
0.45 lbs. |
| 18"Hg |
2.73 lbs. |
1.36 lbs. |
| 27"Hg |
4.10 lbs. |
2.05 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Polyurethane |
Excellent |
Excellent |
Excellent |
50 to 122 °F (10 to 50 °C) |
Video of Product in Action
No Videos available for: SB25P-3055-18M

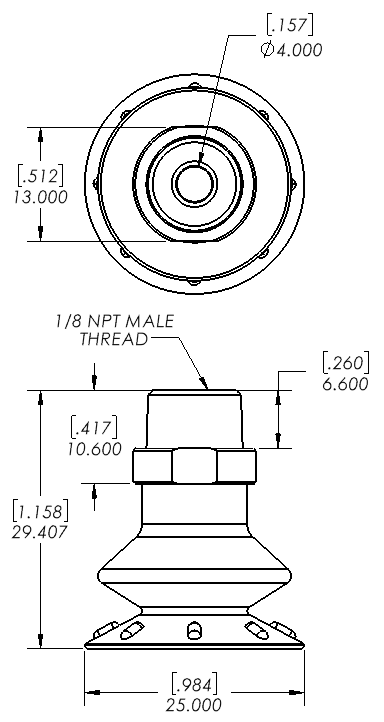

Related CAD files of Product
