Item: SB22-NBR-1032M - 22mm single bellows NBR suction cup with 10-32 ma... (Full Description below)
| |
Item#: SB22-NBR-1032M
Price: $5.04 ea.
|

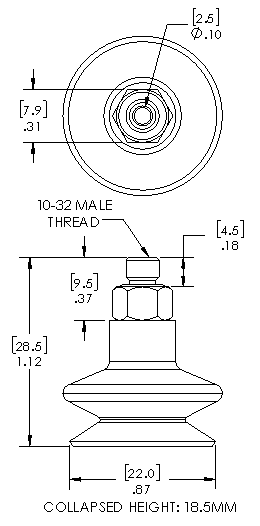

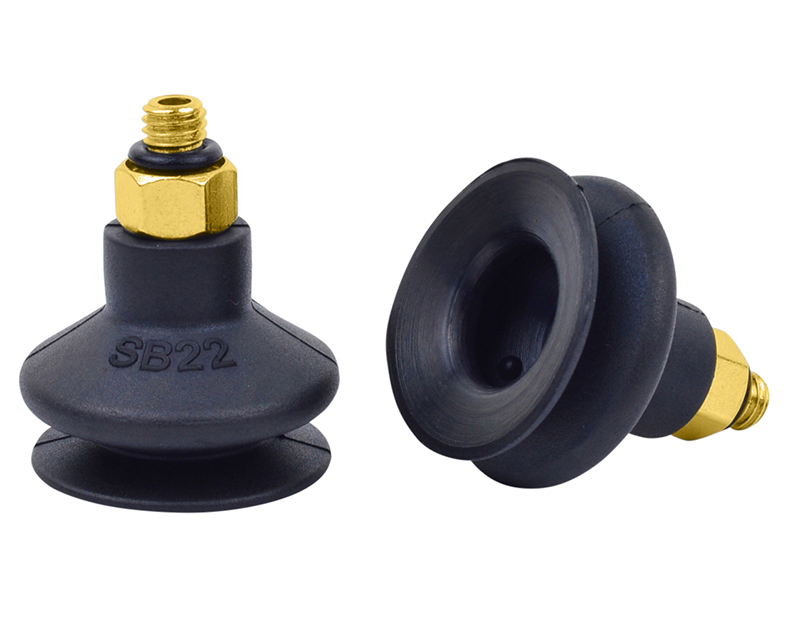

22mm single bellows NBR suction cup with 10-32 male fitting
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: 10-32 male
Bellows: 1.5
Outside Diameter: 22.0mm
Weight(lbs): .0114
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB22-NBR-1032M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.70 lbs. |
0.35 lbs. |
| 18"Hg |
2.12 lbs. |
1.06 lbs. |
| 27"Hg |
3.18 lbs. |
1.59 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: B1.5-22-NBR-10-32M |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos available for: SB22-NBR-1032M
Related CAD files of Product
