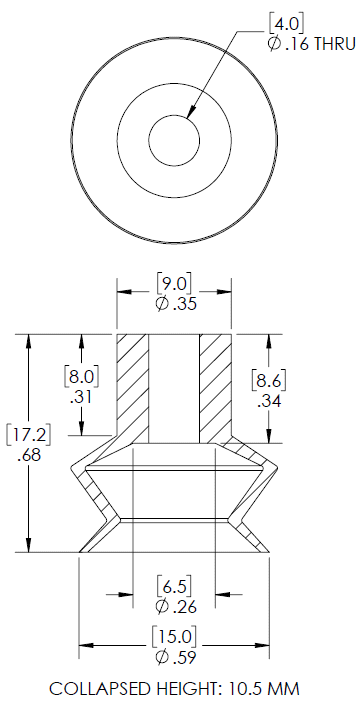

Home > Products > Suction Cups > 210.015.012.V Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 210.015.012.V - 15mm single bellows Vinyl suction cup Item#: 210.015.012.V Price: $3.31 ea. 15mm single bellows Vinyl suction cup General Specifications Style: Bellows Cleats: No Material: Vinyl Thread Size: None Bellows: 1.5 Outside Diameter: 15.0mm Weight(lbs): 0.0024 Color: Blue Vinyl Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 210.015.012.V    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.32 lbs. 0.16 lbs. 18"Hg 0.98 lbs. 0.49 lbs. 27"Hg 1.47 lbs. 0.73 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Vinyl Excellent Good Poor -4 to 176 °F (-20 to 80 °C) Video of Product in Action No Videos available for: 210.015.012.V No CAD files available for this Product Dimensional drawing for Item: 210.015.012.V                                Click on the image to enlarge Parts and accessories for Suction Cup: 210.015.012.V                                No parts or accessories related to this item were found.
