Item: SB14-SIT-G18M - 13mm single bellows FDA Silicone suction cup with... (Full Description below)
| |
Item#: SB14-SIT-G18M Price: $6.67 ea.
|

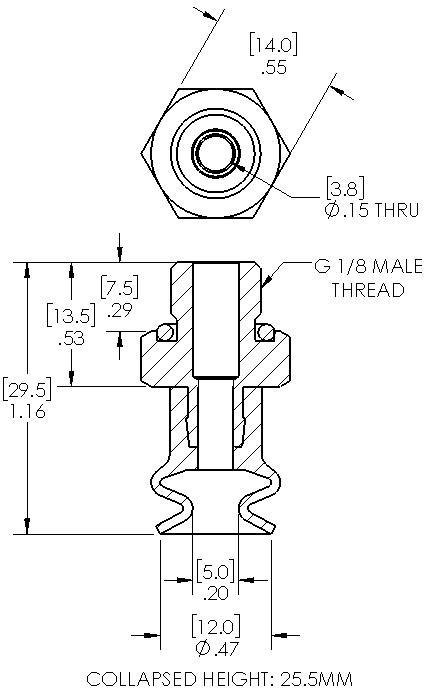

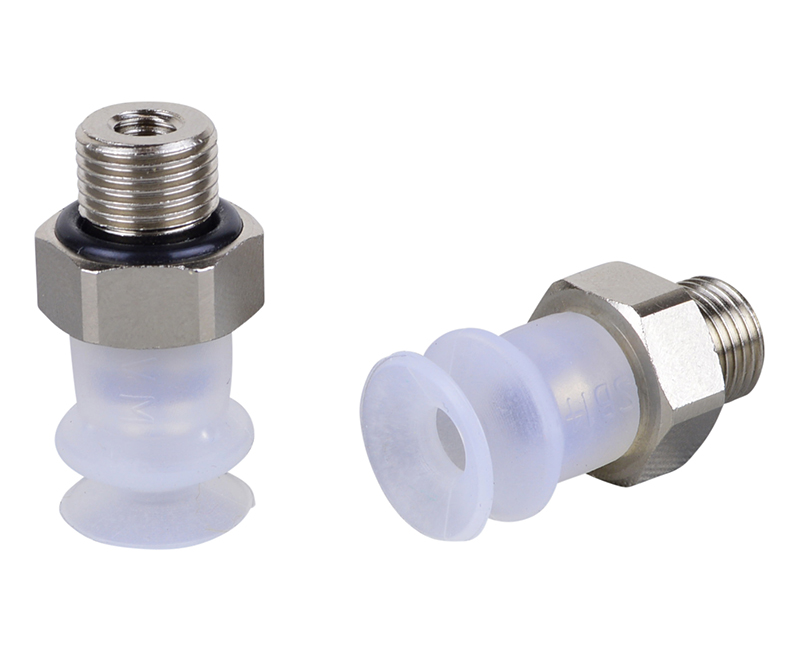

13mm single bellows FDA Silicone suction cup with G1/8 male fitting
General Specifications
Style: Bellows Cleats: No Material: Silicone Thread Size: 1/8" male Bellows: 1.5 Outside Diameter: 13.0mm Weight(lbs): 0.0105 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB14-SIT-G18M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.24 lbs. |
0.12 lbs. |
| 18"Hg |
0.74 lbs. |
0.37 lbs. |
| 27"Hg |
1.11 lbs. |
0.55 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
Recommended replacement for: FSGA 14 SI-55 G1/8-AG, 10.01.06.00384 , VSA14SIT5IM18C |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action

No Videos available for: SB14-SIT-G18M
No CAD files available for this Product
