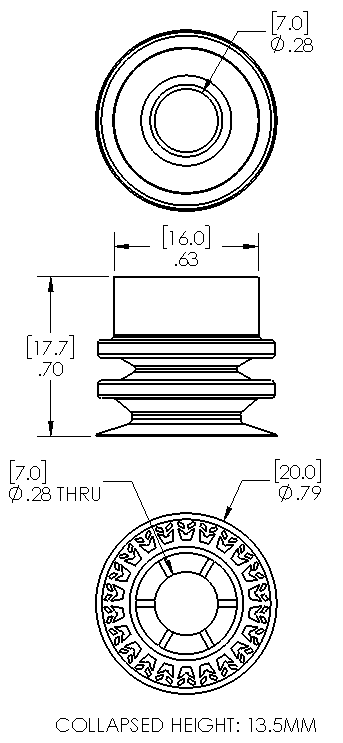

Home > Products > Suction Cups > 25B.020.006.02-W Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 25B.020.006.02-W - 20mm 2.5 bellows Silicone suction cup with bag st... (Full Description below) Item#: 25B.020.006.02-W Price: $14.46 ea. 20mm 2.5 bellows Silicone suction cup with bag stabilizer General Specifications Style: Bellows Cleats: Yes Material: Silicone Thread Size: None Bellows: 2.5 Outside Diameter: 20.0mm Weight(lbs): .0055 Color: Blue Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item 25B.020.006.02-W    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.58 lbs. 0.29 lbs. 18"Hg 1.75 lbs. 0.87 lbs. 27"Hg 2.62 lbs. 1.31 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: ZP3P-20JT2SF-W Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 25B.020.006.02-W Related CAD files of Product Dimensional drawing for Item: 25B.020.006.02-W                                Click on the image to enlarge Parts and accessories for Suction Cup: 25B.020.006.02-W                                Fitting Image for 401.043 Item#: 401.043 compatible with cup #25B.020.006.02-W General Specifications Material: Aluminum Weight: .0075(lbs) Dimensions: G1/8" male Price: $6.00 each Description: G1/8 male fitting for blue 20-25mm bag handling cups Add to Cart Dimensional Fitting Drawing for 401.043 Fitting Image for 402.028 Item#: 402.028 compatible with cup #25B.020.006.02-W General Specifications Material: Aluminum Weight: .0135(lbs) Dimensions: G1/4" male Price: $6.00 each Description: G1/4 male fitting for 20-25mm blue bag cups Add to Cart Dimensional Fitting Drawing for 402.028 Fitting Image for 401.045 Item#: 401.045 compatible with cup #25B.020.006.02-W General Specifications Material: Aluminum Weight: .0135(lbs) Dimensions: G1/8" female Price: $6.00 each Description: G1/8 female fitting for 20-25mm blue bag cups Add to Cart Dimensional Fitting Drawing for 401.045

---
