Item: MB50P-3055T-G38FS - 50mm 2.5 bellows dual durometer Polyurethane suct... (Full Description below)
| |
Item#: MB50P-3055T-G38FS
Price: $34.28 ea.
|

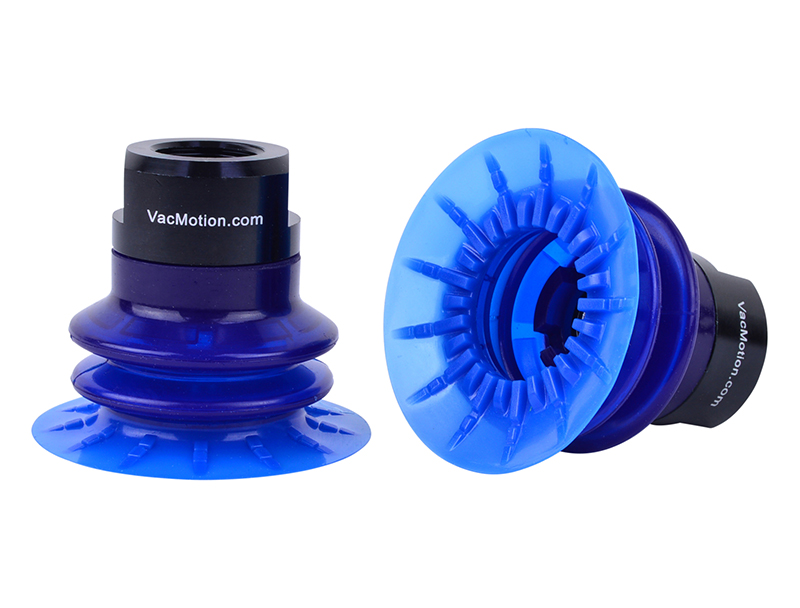

50mm 2.5 bellows dual durometer Polyurethane suction cup, thin lip, and G3/8 female fitting with screen
General Specifications
Style: Bellows
Cleats: Yes
Material: Polyurethane
Thread Size: 3/8" female
Bellows: 2.5
Outside Diameter: 50.0mm
Weight(lbs): .0495
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB50P-3055T-G38FS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
3.65 lbs. |
1.82 lbs. |
| 18"Hg |
10.95 lbs. |
5.47 lbs. |
| 27"Hg |
16.43 lbs. |
8.21 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: S.MX50P3060.G38F.00, S.MX50P3060.G38F.01 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Polyurethane |
Excellent |
Excellent |
Excellent |
50 to 122 °F (10 to 50 °C) |
Video of Product in Action
No Videos available for: MB50P-3055T-G38FS

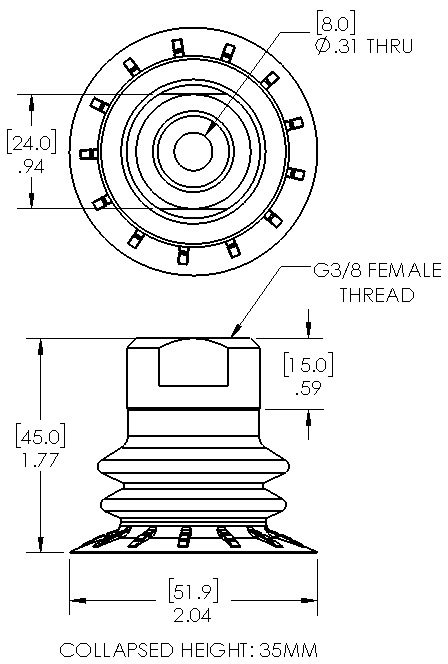

Related CAD files of Product
