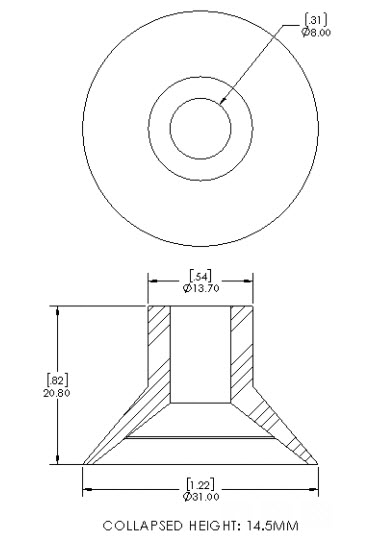

Home > Products > Suction Cups > 10F.031.001.03 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.031.001.03 - 31mm flat natural rubber suction cup Item#: 10F.031.001.03 Price: $4.15 ea. 31mm flat natural rubber suction cup General Specifications Style: Flat Cleats: No Material: Natural Rubber Thread Size: None Outside Diameter: 31.0mm Weight(lbs): .0055 Color: Yellow Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10F.031.001.03    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 1.40 lbs. 0.70 lbs. 18"Hg 4.21 lbs. 2.10 lbs. 27"Hg 6.31 lbs. 3.15 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Natural Rubber Excellent Poor Good -94 to 176 °F (-70 to 80 °C) Video of Product in Action No Videos available for: 10F.031.001.03 Related CAD files of Product Dimensional drawing for Item: 10F.031.001.03                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.031.001.03                                No parts or accessories related to this item were found.
