Item: MB32-NR-18F - 32mm 2.5 bellows NR suction cup with 1/8 NPT fema... (Full Description below)
| |
Item#: MB32-NR-18F
Price: $10.82 ea.
|

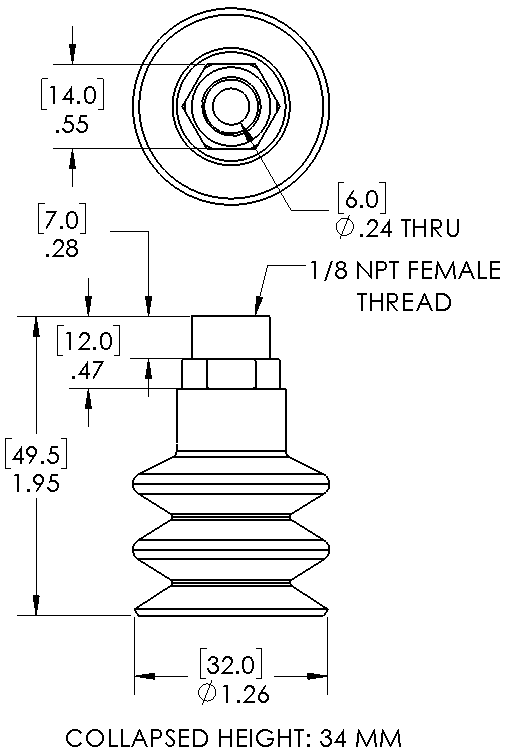

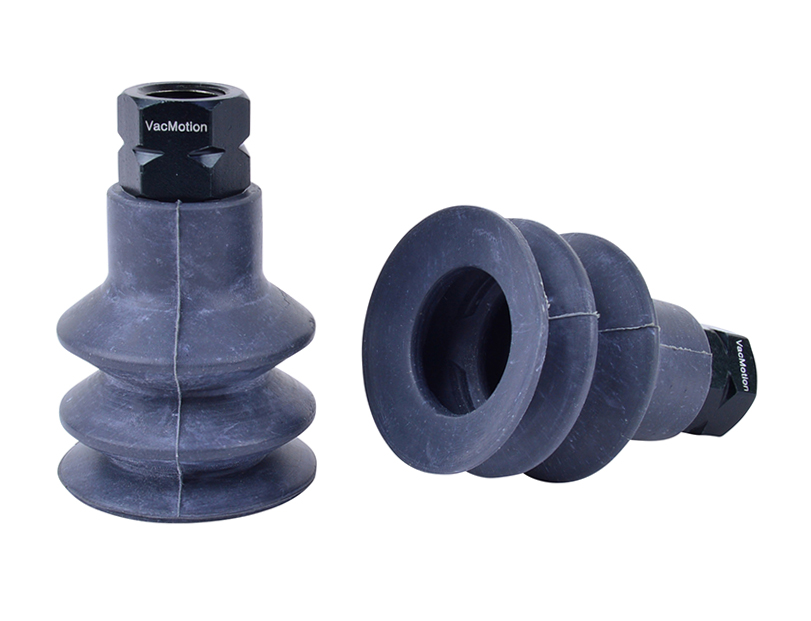

32mm 2.5 bellows NR suction cup with 1/8 NPT female fitting
General Specifications
Style: Bellows
Cleats: No
Material: Natural Rubber
Thread Size: 1/8" female
Bellows: 2.5
Outside Diameter: 32.0mm
Weight(lbs): .0227
Color: Grey
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB32-NR-18F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.49 lbs. |
0.74 lbs. |
| 18"Hg |
4.48 lbs. |
2.24 lbs. |
| 27"Hg |
6.73 lbs. |
3.36 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Natural Rubber |
Excellent |
Poor |
Good |
-94 to 176 °F (-70 to 80 °C) |
Video of Product in Action
No Videos available for: MB32-NR-18F
Related CAD files of Product
