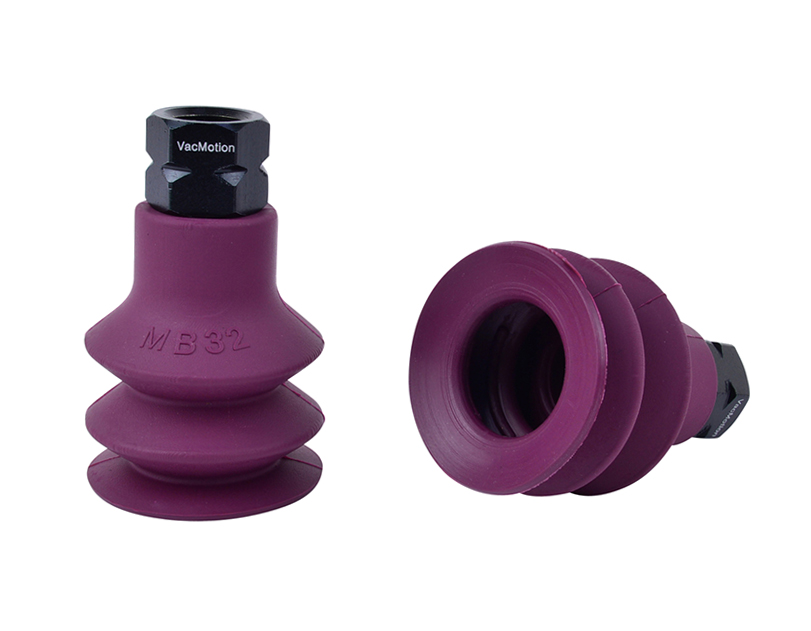

Home > Products > Suction Cups > MB32-HNBR-18F Product DetailsDimensional DrawingParts & Accessories Quantity: Item: MB32-HNBR-18F - 30mm multiple bellows H-NBR suction cup with 1/8 ... (Full Description below) Item#: MB32-HNBR-18F Price: $17.07 ea. 30mm multiple bellows H-NBR suction cup with 1/8 NPT female fitting General Specifications Style: Bellows Cleats: No Material: HNBR Thread Size: 1/8" female Bellows: 2.5 Outside Diameter: 32.0mm Weight(lbs): .0272 Color: Dark Red Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item MB32-HNBR-18F    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 1.49 lbs. 0.74 lbs. 18"Hg 4.48 lbs. 2.24 lbs. 27"Hg 6.73 lbs. 3.36 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range HNBR Good Excellent Good -22 to 320 °F (-40 to 160 °C) Video of Product in Action No Videos available for: MB32-HNBR-18F Related CAD files of Product Dimensional drawing for Item: MB32-HNBR-18F                                Click on the image to enlarge Parts and accessories for Suction Cup: MB32-HNBR-18F                                Fitting Image for 401.034 Item#: 401.034 compatible with cup #MB32-HNBR-18F General Specifications Material: Aluminum Weight: .0052(lbs) Dimensions: G1/8" female Description: G1/8 female barb fitting (MB/SB 32-62mm) *This fitting is included with the cup(MB32-HNBR-18F) Dimensional Fitting Drawing for 401.034
