Item: SB16-HNBR-18M - 16mm single bellows cup, H-NBR, with 1/8 male NPT... (Full Description below)
| |
Item#: SB16-HNBR-18M
Price: $10.44 ea.
|

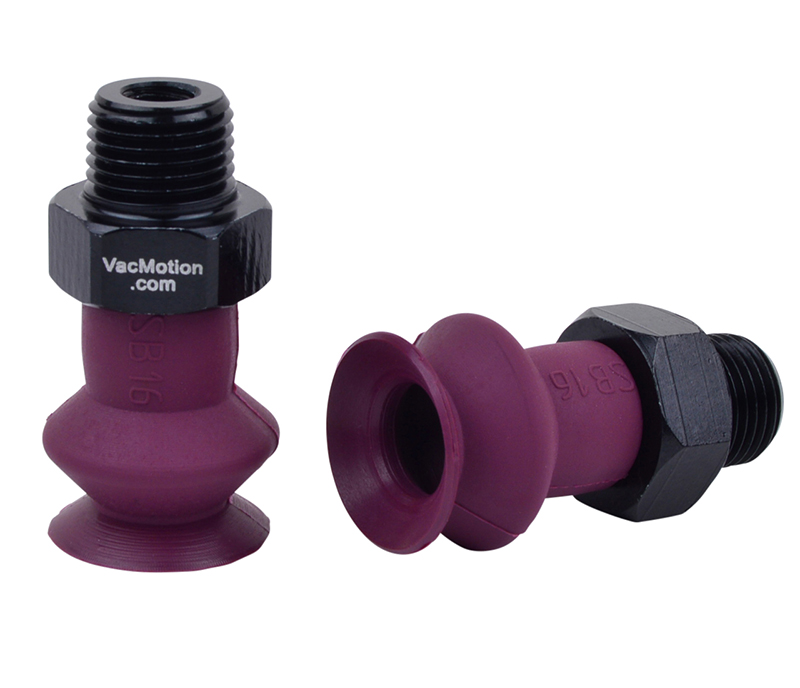

16mm single bellows cup, H-NBR, with 1/8 male NPT fitting
General Specifications
Style: Bellows
Cleats: No
Material: HNBR
Thread Size: 1/8" male
Bellows: 1.5
Outside Diameter: 16.0mm
Weight(lbs): .0100
Color: Dark Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB16-HNBR-18M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.37 lbs. |
0.18 lbs. |
| 18"Hg |
1.12 lbs. |
0.56 lbs. |
| 27"Hg |
1.68 lbs. |
0.84 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| HNBR |
Good |
Excellent |
Good |
-22 to 320 °F (-40 to 160 °C) |
Video of Product in Action
No Videos available for: SB16-HNBR-18M
Related CAD files of Product
