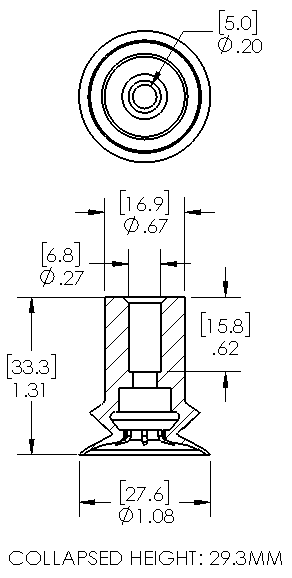

Home > Products > Suction Cups > 15B.028.002.02B Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 15B.028.002.02B - 28mm single bellows blue FDA silicone suction cup... (Full Description below) Item#: 15B.028.002.02B Price: $6.04 ea. 28mm single bellows blue FDA silicone suction cup (V36) General Specifications Style: Bellows Cleats: Yes Material: Silicone Thread Size: None Bellows: 1.5 Outside Diameter: 28.0mm Weight(lbs): .0145 Color: Blue Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 15B.028.002.02B    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 1.14 lbs. 0.57 lbs. 18"Hg 3.43 lbs. 1.71 lbs. 27"Hg 5.15 lbs. 2.57 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: V36 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 15B.028.002.02B Related CAD files of Product Dimensional drawing for Item: 15B.028.002.02B                                Click on the image to enlarge Parts and accessories for Suction Cup: 15B.028.002.02B                                No parts or accessories related to this item were found.
