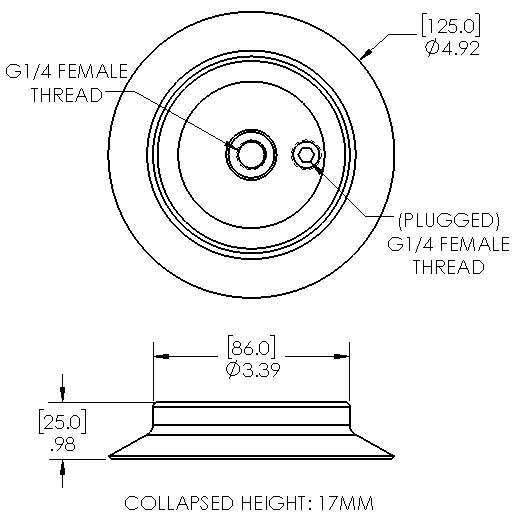

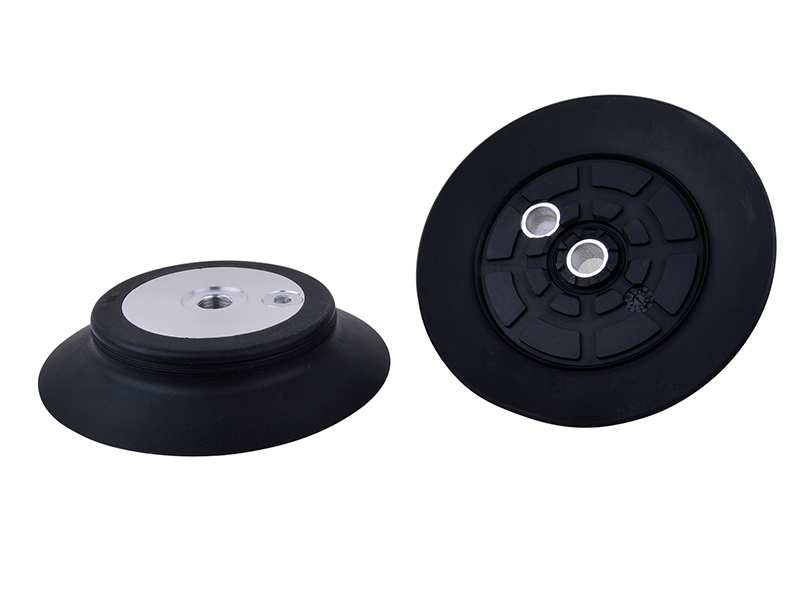

Home > Products > Suction Cups > 10F.125.001.01-G14F Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.125.001.01-G14F - 125mm flat NBR suction cup with cleats and G1/4 f... (Full Description below) Item#: 10F.125.001.01-G14F Price: $123.61 ea. 125mm flat NBR suction cup with cleats and G1/4 female center port with G1/4 side vacuum port General Specifications Style: Flat Cleats: Yes Material: NBR Thread Size: 1/4" female Outside Diameter: 125.0mm Weight(lbs): .478 Color: Black Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10F.125.001.01-G14F    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 22.82 lbs. 11.41 lbs. 18"Hg 68.47 lbs. 34.23 lbs. 27"Hg 102.71 lbs. 51.35 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: SPU 125 NBR-55 G1/4-IG , 10.01.01.01102 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C) Video of Product in Action No Videos available for: 10F.125.001.01-G14F Related CAD files of Product Dimensional drawing for Item: 10F.125.001.01-G14F                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.125.001.01-G14F                                No parts or accessories related to this item were found.
