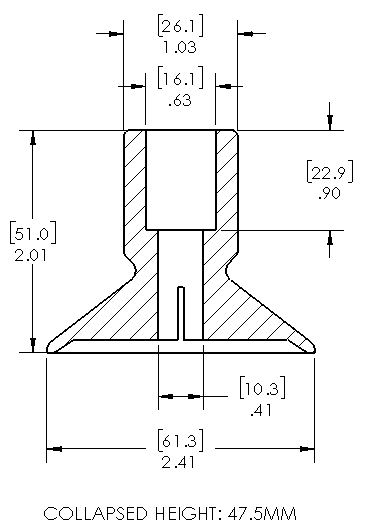

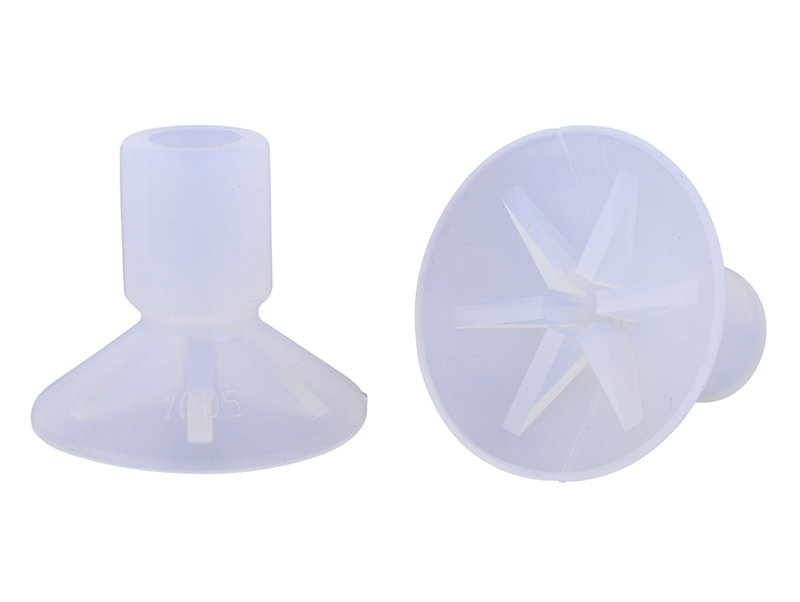

Home > Products > Suction Cups > 10F.063.100.02 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.063.100.02 - 63mm flat FDA Silicone suction cup with cleats Item#: 10F.063.100.02 Price: $6.08 ea. 63mm flat FDA Silicone suction cup with cleats General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: None Outside Diameter: 63.0mm Weight(lbs): .0645 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10F.063.100.02    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 5.79 lbs. 2.89 lbs. 18"Hg 17.39 lbs. 8.69 lbs. 27"Hg 26.09 lbs. 13.04 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: VC-49, VCSI-49 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 10F.063.100.02 Related CAD files of Product Dimensional drawing for Item: 10F.063.100.02                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.063.100.02                                No parts or accessories related to this item were found.
