Item: 10F.035.002.02-G14M - 35 mm Flat suction cup, thin lip silicone, 40 sho... (Full Description below)
| |
Item#: 10F.035.002.02-G14M
Price: $18.44 ea.
|

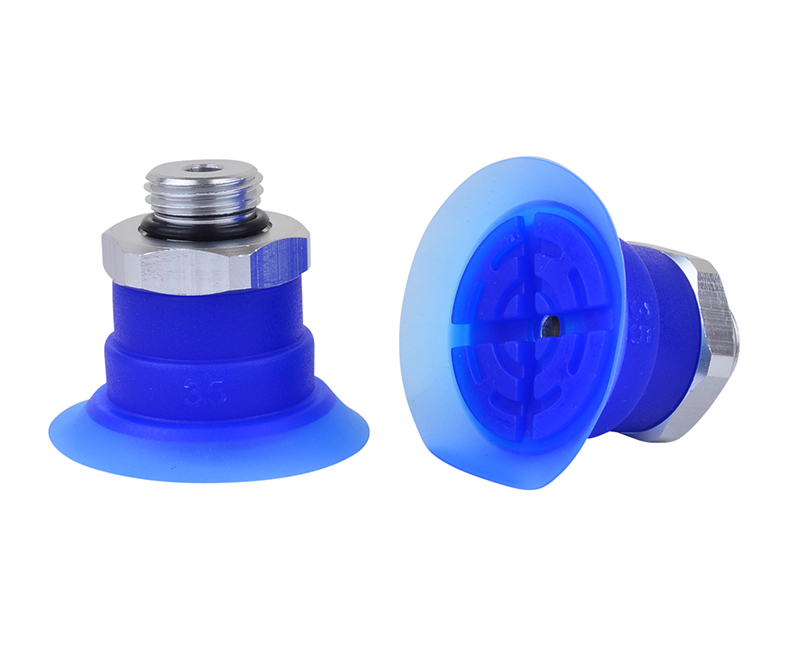

35 mm Flat suction cup, thin lip silicone, 40 shore with G 1/4 female fitting
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/4" male
Outside Diameter: 35.0mm
Weight(lbs): .0325
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.035.002.02-G14M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.78 lbs. |
0.89 lbs. |
| 18"Hg |
5.36 lbs. |
2.68 lbs. |
| 27"Hg |
8.05 lbs. |
4.02 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

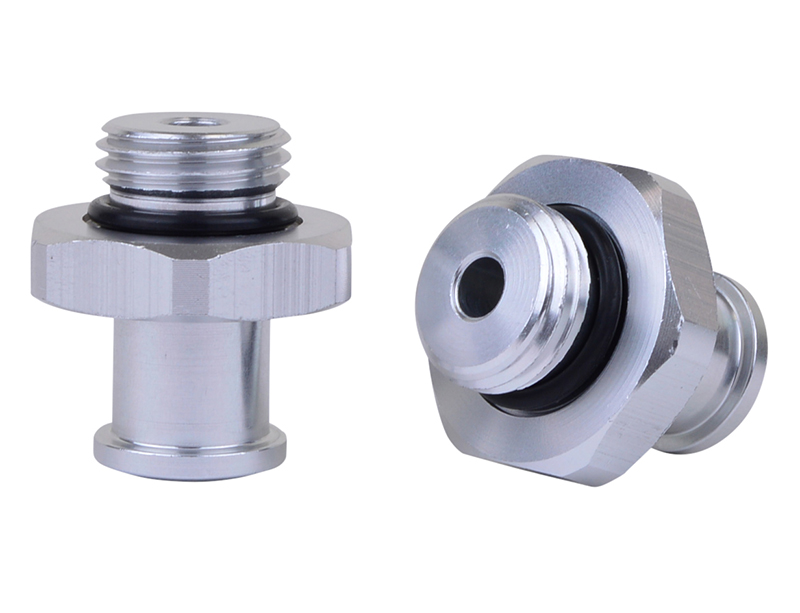

Includes fitting?: YES
 Recommended replacement for: ZP3P-T35PTSF-AG2 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos available for: 10F.035.002.02-G14M

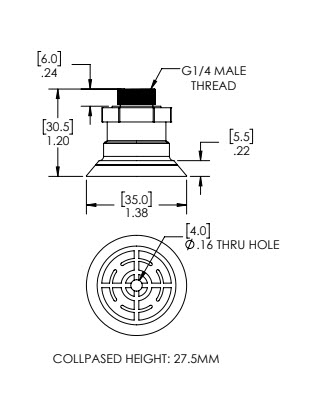

Related CAD files of Product
