Item: 10F.040.005.02-G14M - 40mm flat FDA Silicone suction cup with cleats wi... (Full Description below)
| |
Item#: 10F.040.005.02-G14M
Price: $8.93 ea.
|

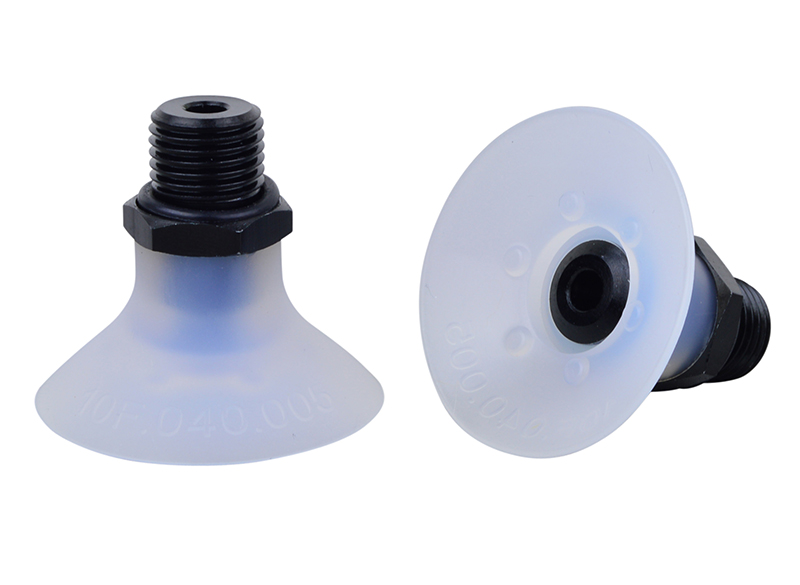

40mm flat FDA Silicone suction cup with cleats with G 1/4 male fitting
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/4" male
Outside Diameter: 40.0mm
Weight(lbs): .073
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.040.005.02-G14M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
2.33 lbs. |
1.16 lbs. |
| 18"Hg |
7.01 lbs. |
3.50 lbs. |
| 27"Hg |
10.51 lbs. |
5.25 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: VP40SIT5IM14C, VP40SIT5IM14C, VP40SIT5IM14, VP40SIT5IM14V |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos available for: 10F.040.005.02-G14M
