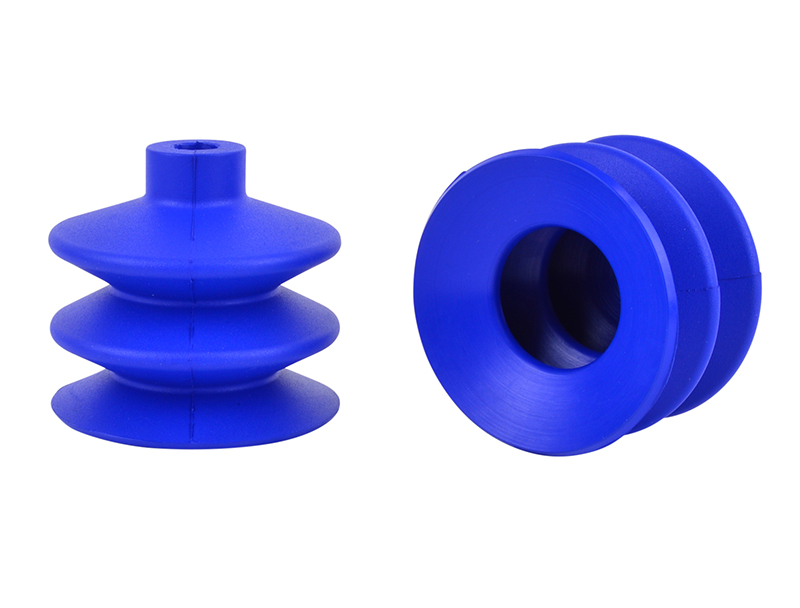

Item: MB52-HNBR - 52mm 2.5 bellows HNBR suction cup
| |
Item#: MB52-HNBR
Price: $24.30 ea.
|
52mm 2.5 bellows HNBR suction cup
General Specifications
Style: Bellows
Cleats: No
Material: HNBR
Thread Size: None
Bellows: 2.5
Outside Diameter: 52.0mm
Weight(lbs): .0244
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB52-HNBR
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
3.95 lbs. |
1.97 lbs. |
| 18"Hg |
11.85 lbs. |
5.92 lbs. |
| 27"Hg |
17.77 lbs. |
8.88 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| HNBR |
Good |
Excellent |
Good |
-22 to 320 °F (-40 to 160 °C) |
Video of Product in Action
No Videos available for: MB52-HNBR

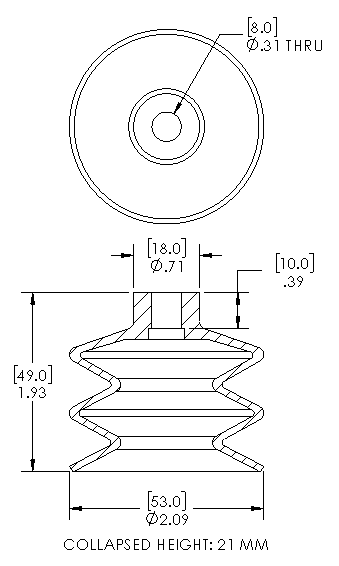

Related CAD files of Product
