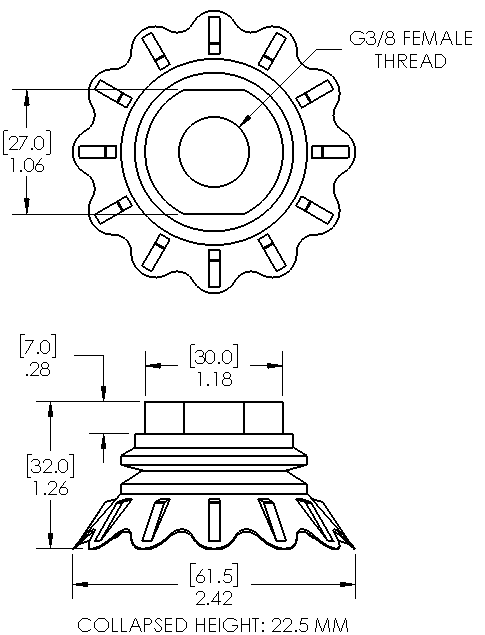

Home > Products > Suction Cups > 10F.060.002.02-G38F Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.060.002.02-G38F - 60mm flower shaped thin lip bag handling suction ... (Full Description below) Item#: 10F.060.002.02-G38F Price: $43.82 ea. 60mm flower shaped thin lip bag handling suction cup with G3/8 female fitting General Specifications Style: Special Shape Cleats: Yes Material: Silicone Thread Size: 3/8" female Outside Diameter: 60.0mm Weight(lbs): .0440 Color: Blue Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10F.060.002.02-G38F    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 5.25 lbs. 2.62 lbs. 18"Hg 15.77 lbs. 7.88 lbs. 27"Hg 23.66 lbs. 11.83 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES   Recommended replacement for: FPC60SIBL3IF38PC Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 10F.060.002.02-G38F Related CAD files of Product Dimensional drawing for Item: 10F.060.002.02-G38F                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.060.002.02-G38F                                Fitting Image for 403.017 Item#: 403.017 compatible with cup #10F.060.002.02-G38F General Specifications Material: Plastic Weight: .0220(lbs) Dimensions: G3/8" female Description: G3/8 fitting for 60 mm Flower cup *This fitting is included with the cup(10F.060.002.02-G38F) Dimensional Fitting Drawing for 403.017
