Item: 088050A - 80mm deep flat NBR rubber suction cup with M10 ma... (Full Description below)
| |
Item#: 088050A
Price: $42.10 ea.
|

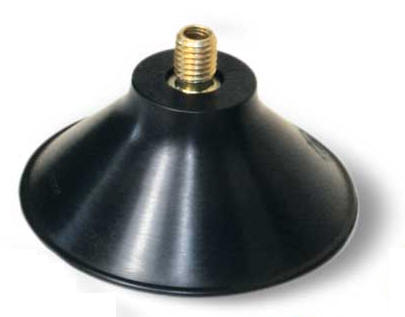

80mm deep flat NBR rubber suction cup with M10 male fitting
General Specifications
Style: Flat
Cleats: No
Material: BENZ
Thread Size: M10 male

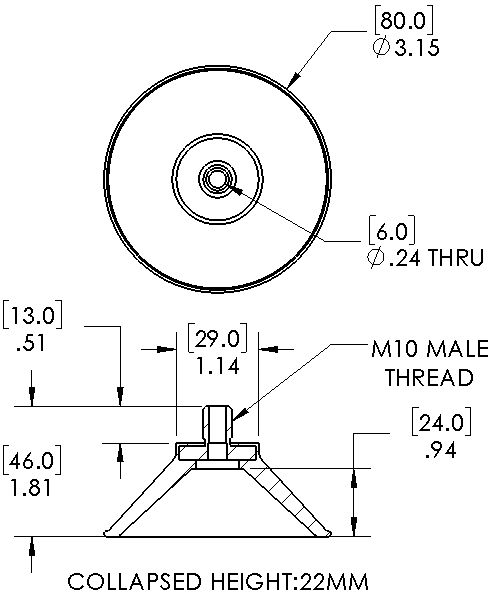

Outside Diameter: 80.0mm
Weight(lbs): 0.127
Color: Black BENZ
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 088050A
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
9.34 lbs. |
4.67 lbs. |
| 18"Hg |
28.04 lbs. |
14.02 lbs. |
| 27"Hg |
42.07 lbs. |
21.03 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| BENZ |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos available for: 088050A
No CAD files available for this Product
