Item: 10F.022.002.02 - 22mm flat FDA Silicone suction cup with cleats
| |
Item#: 10F.022.002.02
Price: $5.25 ea.
|

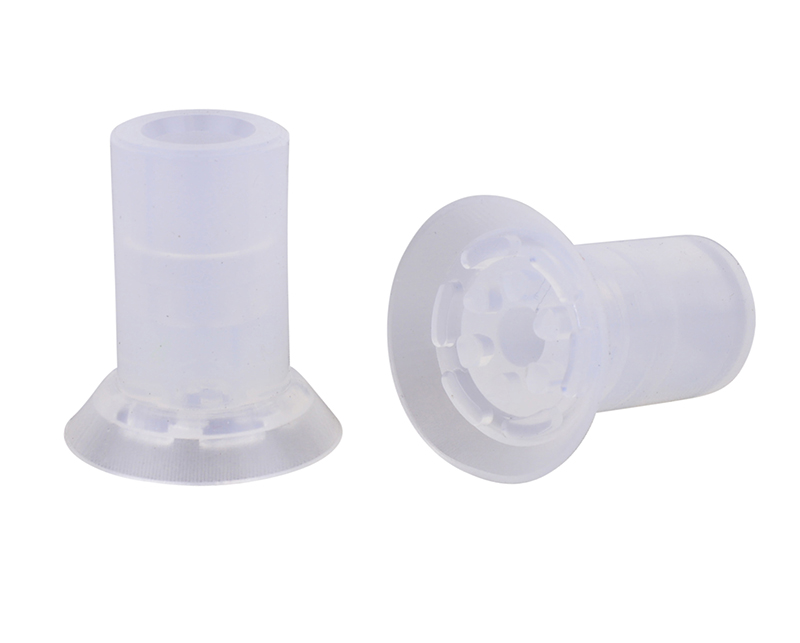

22mm flat FDA Silicone suction cup with cleats
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: None
Outside Diameter: 22.0mm
Weight(lbs): .0060
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.022.002.02
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.70 lbs. |
0.35 lbs. |
| 18"Hg |
2.12 lbs. |
1.06 lbs. |
| 27"Hg |
3.18 lbs. |
1.59 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos available for: 10F.022.002.02

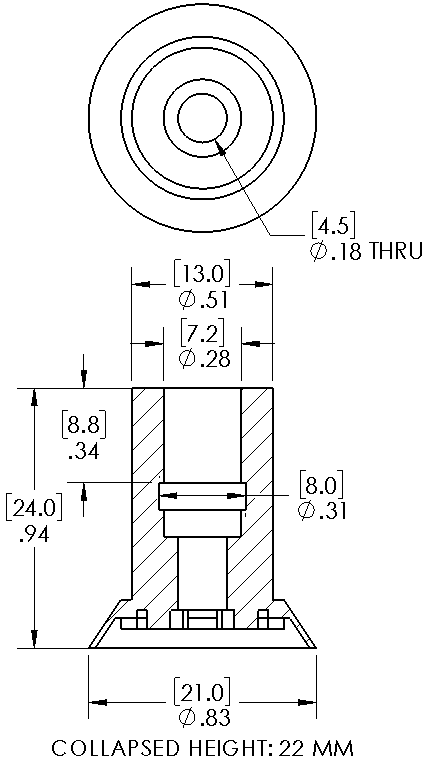

Related CAD files of Product
