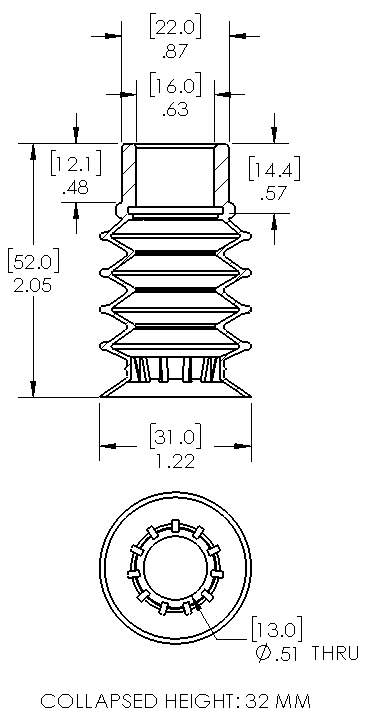

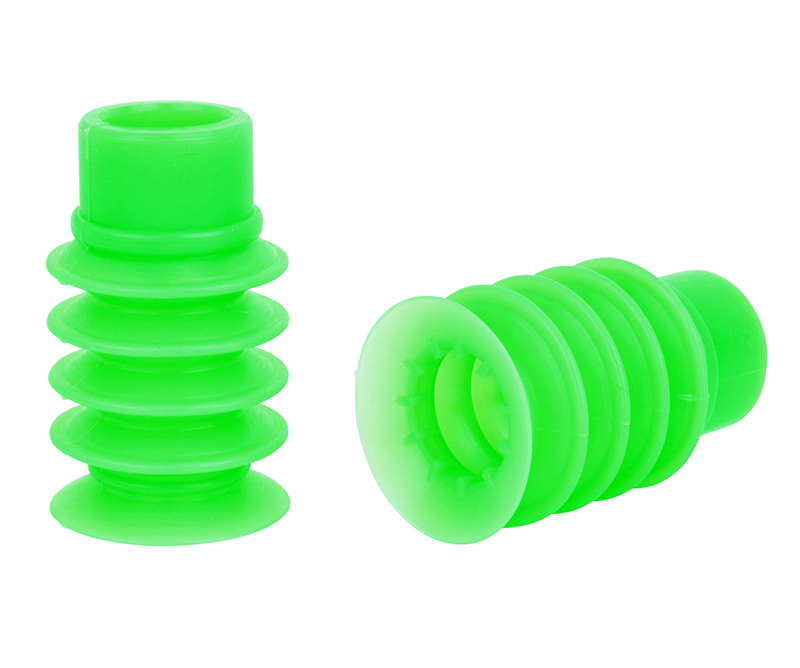

Home > Products > Suction Cups > 45B.030.001.02 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 45B.030.001.02 - 30mm 4.5 bellows Silicone suction cup Item#: 45B.030.001.02 Price: $14.68 ea. 30mm 4.5 bellows Silicone suction cup General Specifications Style: Bellows Cleats: Yes Material: Silicone Thread Size: None Bellows: 4.5 Outside Diameter: 30.0mm Weight(lbs): .0190 Color: Green Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 45B.030.001.02    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 1.31 lbs. 0.65 lbs. 18"Hg 3.94 lbs. 1.97 lbs. 27"Hg 5.91 lbs. 2.95 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: 10.01.06.02589, SPB4 30 SI-55 SC080 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 45B.030.001.02 Related CAD files of Product Dimensional drawing for Item: 45B.030.001.02                                Click on the image to enlarge Parts and accessories for Suction Cup: 45B.030.001.02                                No parts or accessories related to this item were found.
